S image of VT-VPCD-1-11a/V0/1-0-1

VT-VPCD-1-11a/V0/1-0-1

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

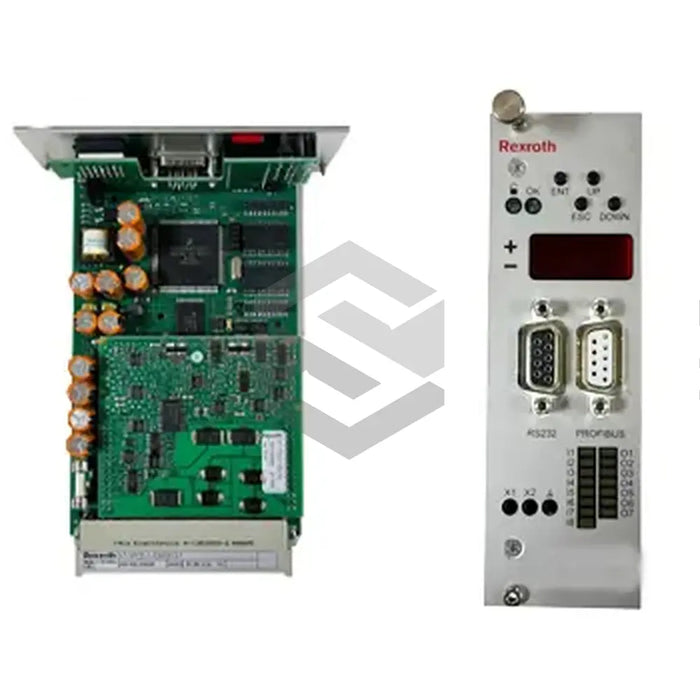

Bosch Rexroth Indramat's VT-VPCD-1-11a/V0/1-0-1 is a digital controller amplifier meant for the electrohydraulic closed-loop control of swivel angle and pressure. This model operates in tandem with variable displacement axial piston pumps equipped with HS4 control and implements necessary electrical functions. It features a user-friendly display that indicates parameters, diagnostic error messages, and fault alerts. Adjustments to parameters can be made via the four provided keys. Further, it incorporates ramp times for swivel angle and pressure command values, a current-regulated output stage, and analog inputs for command and actual values. For electricity, it utilizes a 64-pin male connector. The device is crafted as a double-sided, Euro-card formatted circuit board with a width of 100mm and length of 160mm. An RS232 serial interface is included to simplify configurations via the BODAC software for PCs. Operations like pump size selection, switching output configurations, and leak compensation control can be done effortlessly.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Digital Control Amplifiers

Model

VT-VPCD-1-11a/V0/1-0-1

Primary Use

Controlling variable displacement axial piston pumps with HS4 control

Display

Parameters, error messages and fault alerts

Input

Analog inputs for command and actual values

Connection Type

64-pin male connector based on DIN 41 612, form G

Dimensions

Euro-card format with 100mm width and 160mm length

Configuration

RS232 serial interface at the D-sub socket

Software Compatibility

BODAC software for PC
