VT-VPCD-1-15/V0/1-P-1

Original price $4,994.00 - Original price $4,994.00
Original price
$4,994.00
$4,994.00 - $4,994.00
Current price $4,994.00
Available, Shipping Varies
Request a quote

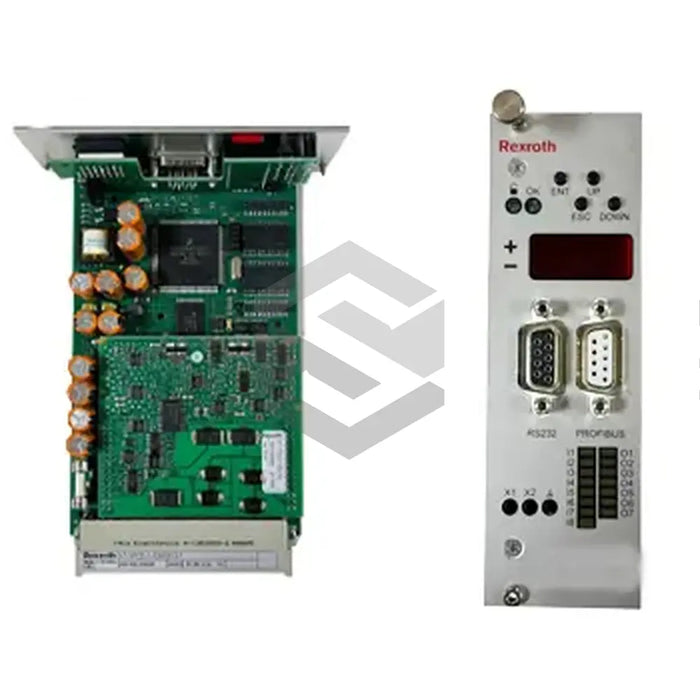

The VT-VPCD-1-15/V0/1-P-1 is a product created by Bosch Rexroth Indramat. It is a digital control amplifier, a part of the VT-VPCD series, designed to work effectively alongside HS4 control, a system specifically conceptualized for electrohydraulic command of swivel angle and pressure, and for controlled power limitation in variable displacement axial piston pumps. Key features of the product include two custom measuring sockets that display process signals, an RS232 serial interface compatible with BODAC software for parameterizing the control amplifier, and multiple functions such as leakage compensation and pump size selection. Operating on a 24 VDC voltage, the product has a maximum current consumption of 2A, 2ms scanning rate, and a 2 Ohm nominal solenoid resistance at 20°C. Included LEDs pinpoint operating status and assist with fault identification, complemented by a front-facing display unit for troubleshooting and function navigation. The product is created in line with the Euro-card format, making it 100mm wide and 160mm long, equipped with digital inputs, a current-regulated output stage, and mooring capability.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Digital Control Amplifier
  • Model: VT-VPCD-1-15/V0/1-P-1
  • Control System: HS4 Control
  • Measuring Sockets: Two, Freely Configurable
  • Serial Interface: RS232
  • Software Program: BODAC
  • Operating Voltage: 24 VDC
  • Maximum Current Consumption: 2A
  • Scanning Rate: 2ms
  • Nominal Solenoid Resistance at 20°C: 2 Ohms
  • Indicators: LEDs & Display Unit
  • Size: 100mm Wide and 160mm Long
  • Digital Inputs: Present, For Calling Pre-set Parameters
  • Output Stage: Clocked, Current-Regulated
  • Mooring Capability: Present
