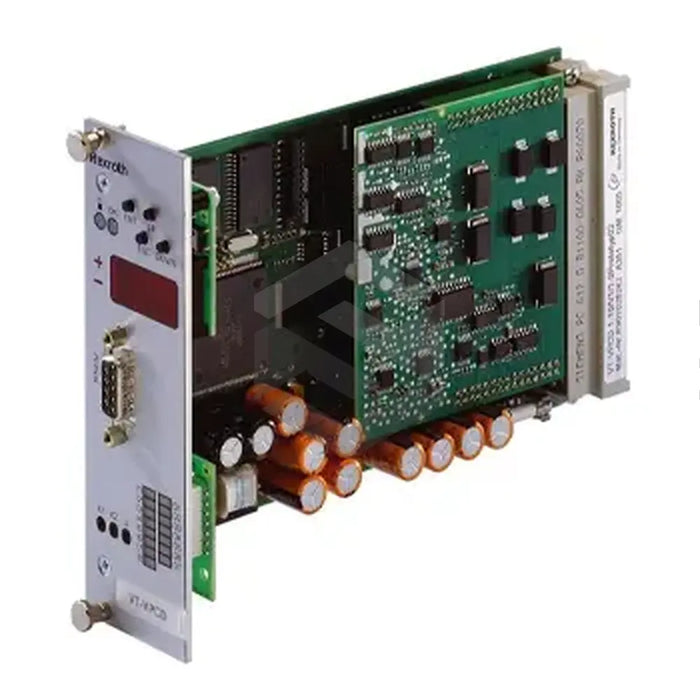

P image of VT-VPCD-1-16/V0/1-0-1

VT-VPCD-1-16/V0/1-0-1

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
Bosch Rexroth Indramat's VT-VPCD-1-16/V0/1-0-1 is a model of digital controller amplifier that exemplifies the company's expertise in industrial hydraulics. This Euro-card-format component comprises a double-sided printed circuit board measuring 100mm by 160mm. Among its features are ramp times for swivel angle and pressure command values, and digital inputs for calling pre-set parameters. Operating at 24VDC (with a +40% to -10% tolerance), its oscillator frequency is around 5kHz. The solenoid's nominal resistance at 20°C is 2 Ohms. A 64-pin male edge connector (DIN 41 612, form G) is recommended for achieving optimal electrical connections. Configuration and parameter settings are executed using the free-to-download BODAC software tool, which interacts with the amplifier's RS 232 9-pin D-sub socket. This tool enables control over various functions, like switching outputs, pump size selection, and leakage compensation. User inputs are facilitated by a display unit featuring four keys for configuration procedures and functional access via its menu structure. Two configurable measurement sockets signal processing signals.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Digital Controller Amplifier

Model

VT-VPCD-1-16/V0/1-0-1

Format

Euro-card

Dimensions

100mm width and 160mm length

Features

Ramp times for swivel angle and pressure command values and digital inputs for calling pre-set parameters

Operating Voltage

24 VDC with a tolerance between +40% and –10%

Oscillator Frequency

Approximately 5kHz

Nominal Resistance

2 Ohms at 20°C

Connector Type

64-pin male edge connector based on the DIN 41 612, form G

Configuration and Parameterization Tool

BODAC software tool for PC

BODAC software Functionality

Configuration of switching outputs, selection of the pump size, and activation or deactivation of leakage compensation and sequence control

Features

Two freely configurable measuring sockets for signalling process signals

Display Unit

Four keys for configuration procedures and function access via menu structure
