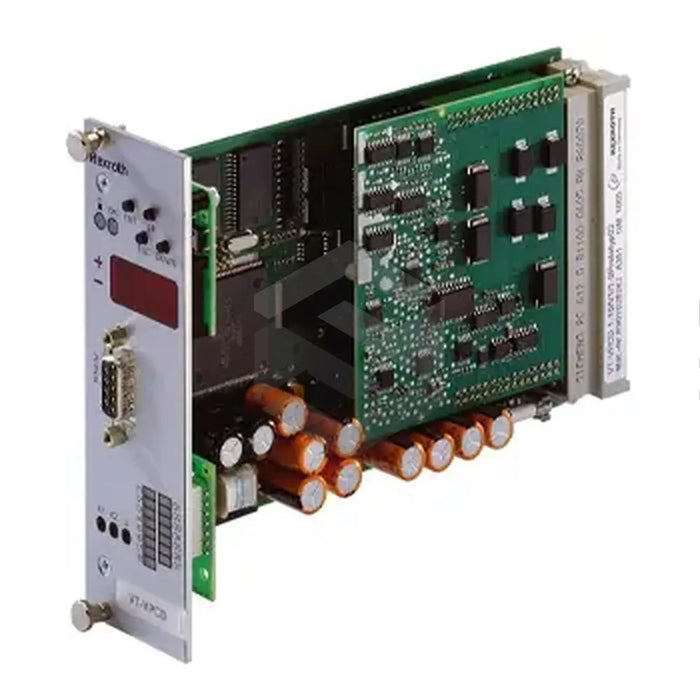

manufacturer image of VT-VPCD-1-17-V0/1-0-1

VT-VPCD-1-17-V0/1-0-1

by Bosch Rexroth Indramat
$6,332.65 - $6,332.65
$6,332.65
$6,332.65 - $6,332.65
$6,332.65
In Stock, Ships 3 - 5 Days
The product in focus is the VT-VPCD-1-17-V0/1-0-1 digital control amplifier, under the renowned banner of Bosch Rexroth Indramat. This compact, advanced-tech component is specifically engineered to control axial piston pumps of type A4VS with an HS4 control system. The salient feature of this model includes a clock-controlled, current-regulated output stage and digital inputs for springing up predetermined parameters. Operating at a voltage of 24 VDC with a tolerance range of +40% to -10%, the unit is parameterizable through an RS232 serial interface that aligns with BODAC software from Bosch Rexroth. User configuration can be done via two measurable sockets at the front of the unit, assisted by a user-friendly four-key display. The lightweight, double-sided PCB unit conforms to Euro-card dimensions, can operate at up to 50°C, and connects via a 64-pin DIN 41 612 male connector.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Digital Controller Amplifier
  • Model: VT-VPCD-1-17-V0/1-0-1
  • Control Type: HS4 Control
  • Output Stage: Clocked, Current-Regulated
  • Scanning Rate: 2ms
  • Solenoid Nominal Resistance Value: 2 Ohms
  • Operating Voltage: 24 VDC (+40% to –10%)
  • Interface: RS232 Serial Interface
  • Software: BODAC
  • Measuring Sockets: Two, Freely Configurable
  • Physical Format: 100mm x 160mm Euro-card
  • Weight: 0.2kg
  • Maximum Ambient Temperature: 50°C
  • Connector: 64-pin Male, DIN 41 612, Form G
