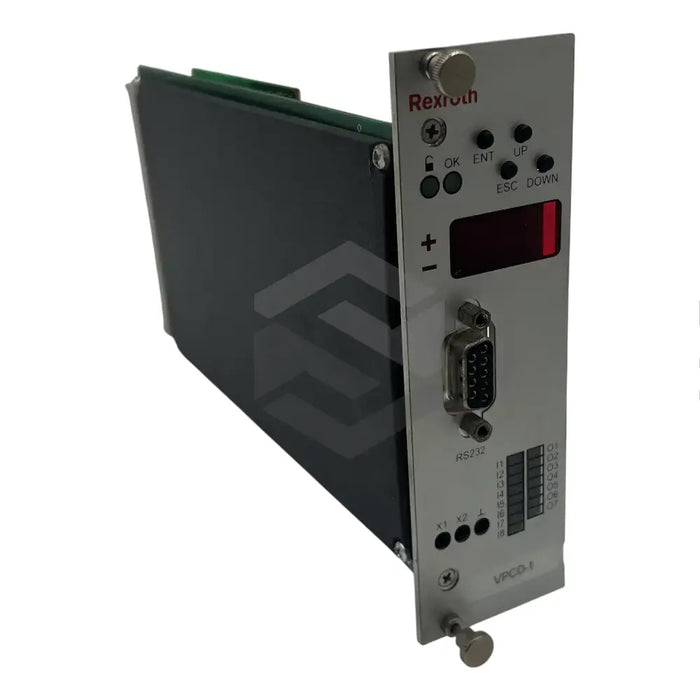

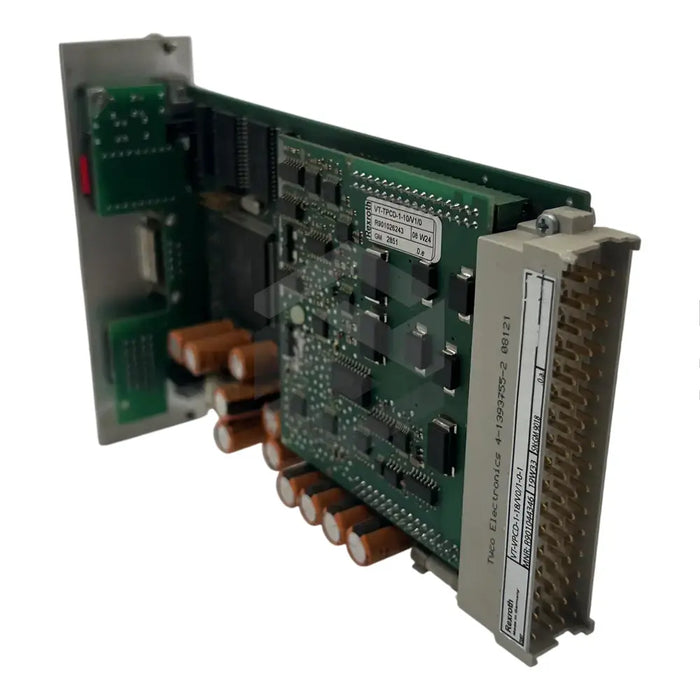

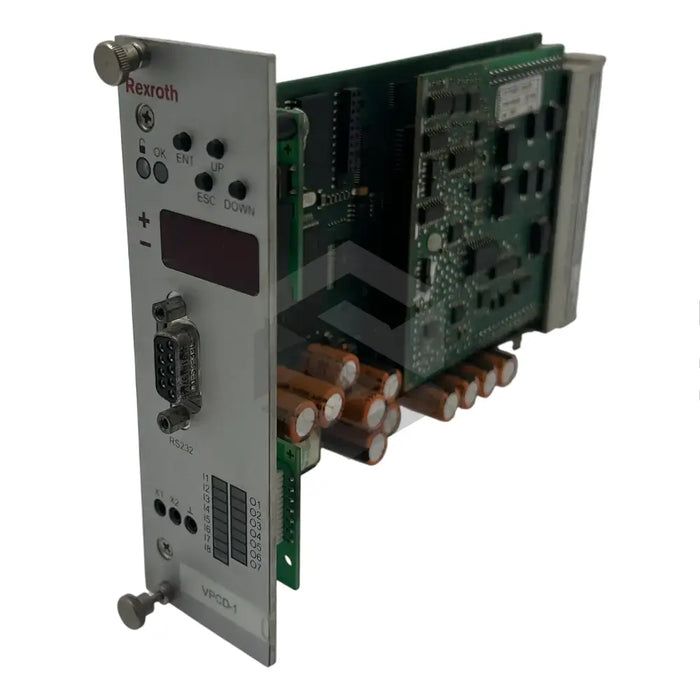

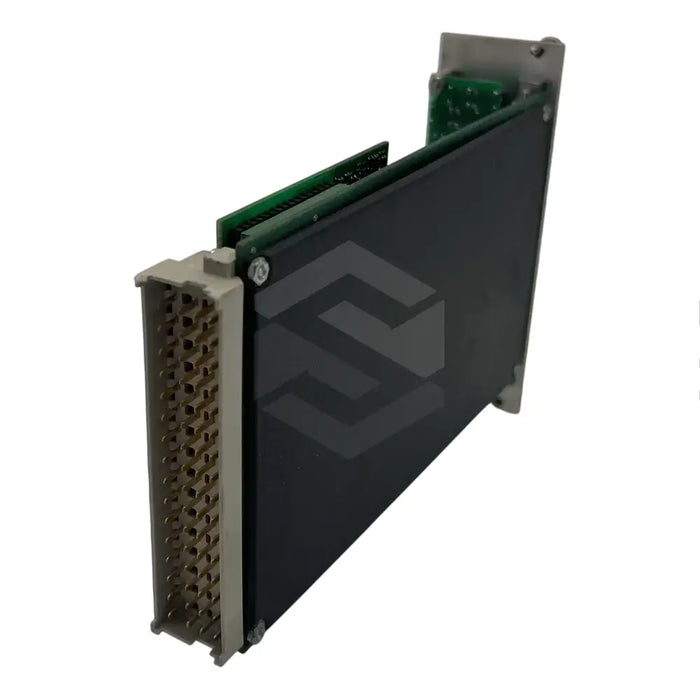

manufacturer image of VT-VPCD-1-1X/V0/1-0-1

VT-VPCD-1-1X/V0/1-0-1

by Bosch Rexroth Indramat
Request a quote
The Bosch Rexroth Indramat's VT-VPCD-1-1X/V0/1-0-1 is a digital controller amplifier card that has been intelligently designed to manage the operations of the company's axial piston pumps of type A4VS with HS4 control. This device enables the electrohydraulic closed-loop control of pressure and swivel angle and can also manage the power limitation of variable displacement axial piston pumps. Notably, it comes with a clocked, current-controlled valve output stage. The card runs on a 24V nominal voltage and is structured in a double-sided printed circuit board adhering to the Euro-card format. With a nominal resistance of 2 Ohms, the amplifier operates optimally in temperatures between 0oC and 50°C. It weighs 0.2kg and employs the RS232 serial interface. The BODAC PC program offered by Bosch Rexroth can be utilized for parameterization, pump size selection, switching outputs configuration, and numerous other functions.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Digital Controller Amplifier Card
  • Model: VT-VPCD-1-1X/V0/1-0-1
  • Primary Usage: Operating Axial Piston Pumps of type A4VS with HS4 control
  • Electrical Functions: Implementing electrical functions required for the HS4 control
  • Bus Interfacing: Basic Component without bus interfacing
  • Valve Output Stage: Clocked and current-regulated valve output stage
  • Additional Functions: Enable input, collective fault functions and digital inputs for calling pre-set parameters
  • Nominal Voltage Requirement: 24V (+40%, -10% Tolerance)
  • Product Dimensions: 100mm width x 160mm length
  • Weight: 0.2kg
  • Interface: RS232 serial interface with a 9-pin D-sub socket
  • Oscillator Frequency: Approximately 5 kHz
  • Nominal Resistance: 2 Ohms (at 20°C)
  • Software: Bosch Rexroth’s BODAC PC program
  • Supported Ambient Temperature: 0oC to 50°C.
