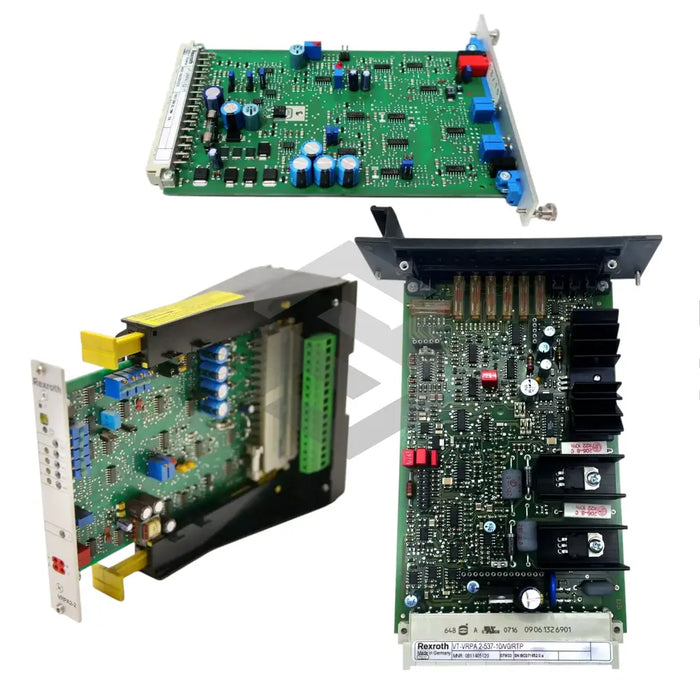

The VT-VRPA1-527-10/V0/QV from Bosch Rexroth Indramat provides 24 VDC supply and 3.7 A solenoid output. Part of the VT-VRPA Electric Amplifiers series, it features 4/3 load sensing design and adjustable sensitivity. It weighs 0.37 kg and includes short-circuit protection.
The board measures 100×160×35 mm with DIN 41612 F32 interface and LED indicators. Operating range is 0°C to +70°C with storage -20°C to +70°C. A PID control option enables precise position control.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Adjustable parameters
Zero point, sensitivity
Circuit board dimensions
100×160×≈35 mm
Command value range
0…+10 V
Feedback signal range
0…+10 V, open-circuit protected
Interface connection
DIN 41612 F32 connector
LED indications
Green=Enable, Yellow=Cable break, Red=Low voltage
Max current consumption
1.5 A (size 6), 2.5 A (size 10)
Operating temperature
0 °C to +70 °C
PID control
Supported for position control
Position sensing cable length
≤50 m
Power consumption
35 W (size 6), 60 W (size 10)
Short-circuit protection
Solenoid outputs and position sensing
Solenoid cable length
≤20 m (1.5 mm²), 20–60 m (2.5 mm²)
Solenoid current output
2.7 A (size 6), 3.7 A (size 10)
Storage temperature
-20 °C to +70 °C
Supply voltage (battery)
21–40 V
Supply voltage (DC)
Nominal 24 V DC
Supply voltage (rectified AC)
Ueff 21–28 V
Weight
0.37 kg
