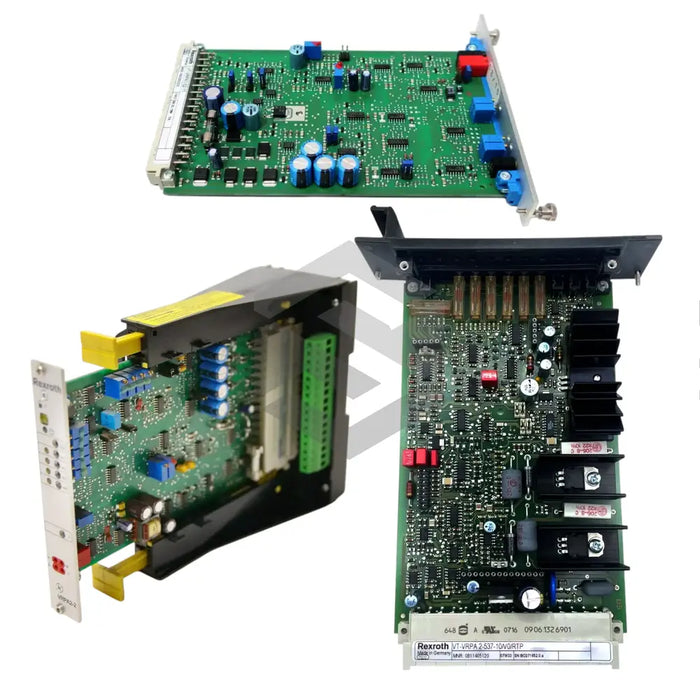

VT-VRPA2-1-10b/V0/T1
The VT-VRPA2-1-10b/V0/T1 from Bosch Rexroth Indramat is a high-performance unit within the VT-VRPA Electric Amplifiers series, engineered for precise signal amplification in industrial automation contexts. This amplifier operates on an Operating voltage of 24 VDC, with a Voltage lower limit value of 18 V and Voltage upper limit value of 35 V, providing robust flexibility across varying supply conditions. Its efficient design ensures a Power consumption below 24 VA and supports a maximum continuous <2 A>, making it ideal for energy-sensitive applications. The amplifier’s compact Dimensions of 150x100x50mm and lightweight construction at 0.17 kg facilitate easy installation in confined control cabinets. Integration is streamlined through a reliable Type of connection via a 48-pin male multipoint connector, DIN 41612, design F interface.
Technical capabilities are robust: the device handles a maximum continuous Current of 5A and accommodates a supply line of 220V AC for auxiliary circuits. The internal design supports a rated Power output of 1kW, ensuring ample headroom for demanding loads. A Fuse rated at 2 A medium time-lag, exchangeable provides overcurrent protection, safeguarding both the amplifier and downstream components. Thermal performance remains stable under continuous operation thanks to optimized internal layouts and effective heat dissipation. The amplifier’s electronic architecture delivers minimal signal distortion and high immunity to electrical noise, meeting stringent industrial EMI standards.
Operational features include real-time voltage monitoring and automatic shutdown upon detection of supply anomalies, enhancing system safety. The exchangeable 2 A medium time-lag fuse simplifies maintenance and reduces downtime, while the low-profile Dimensions save space in densely packed panels. The unit’s low Power consumption and efficient current handling (<2 A idle, 5 A peak) minimize heat generation, extending service life and reliability. Its precision amplification ensures consistent signal fidelity across varied loads, supporting applications requiring repeatable and accurate control signals.
Designed for seamless integration, the amplifier’s 48-pin male multipoint connector allows straightforward connection to standard backplane and busbar systems. Compatibility with Bosch Rexroth controllers and third-party PLCs makes it versatile in retrofit and new installations alike. Typical applications include servo drive loops, motion controllers, robotic manipulators, and factory automation networks. Its combination of compact size, high power density, and reliable protection features positions the VT-VRPA2-1-10b/V0/T1 as a preferred choice for advanced industrial control solutions.
