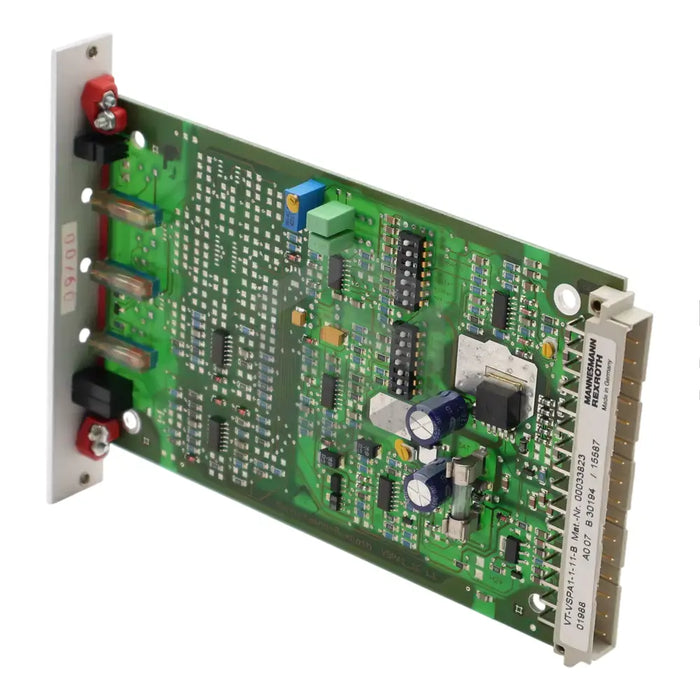

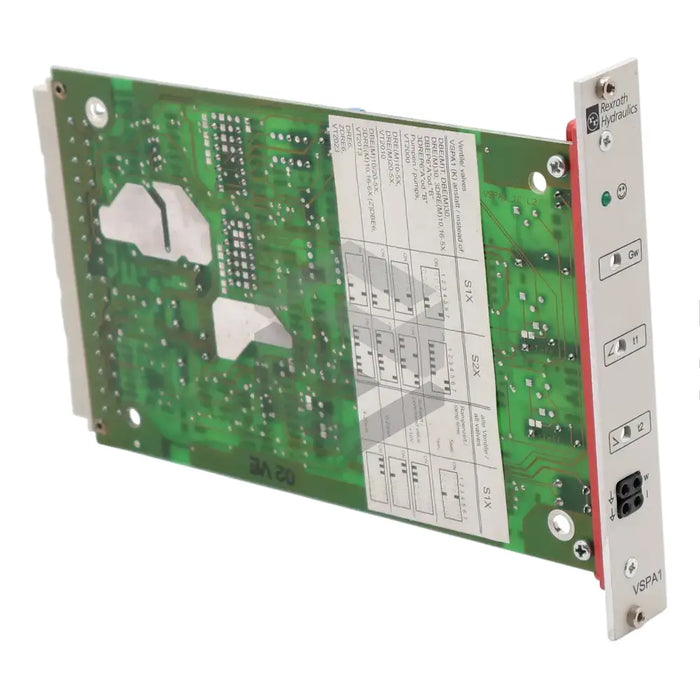

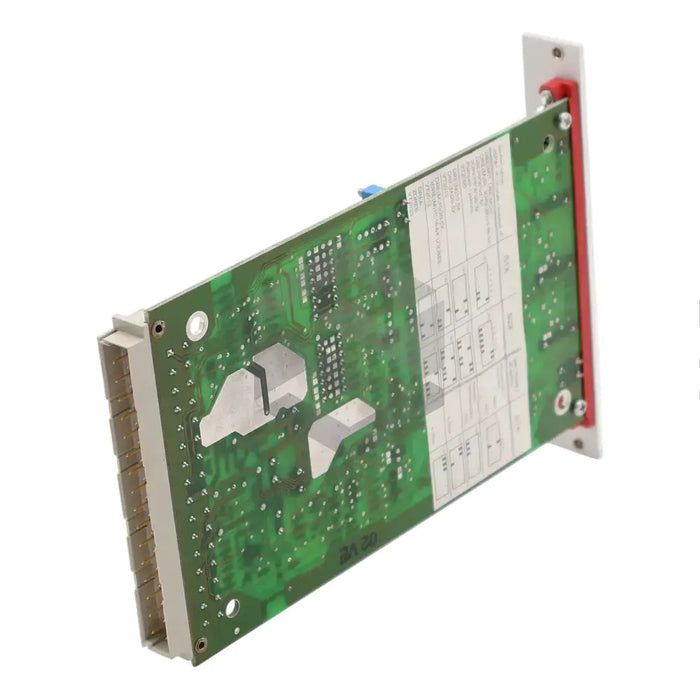

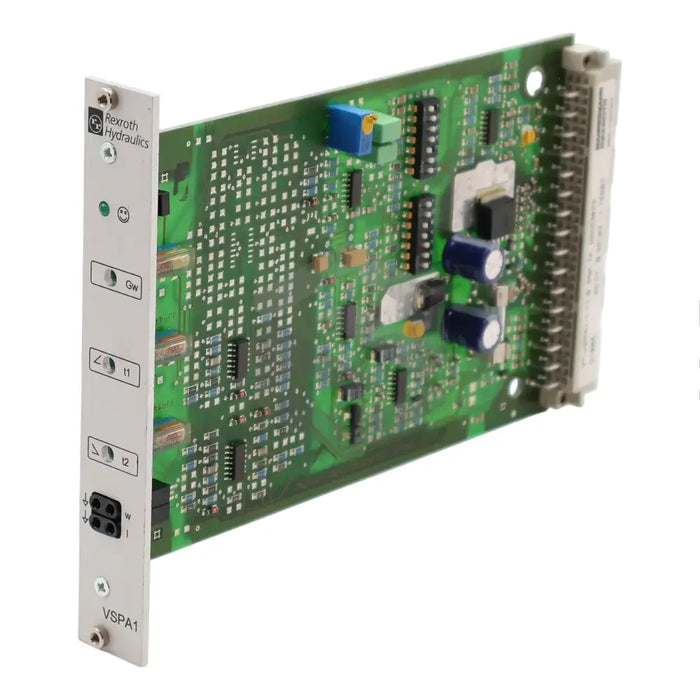

series image of VT-VSPA1-1-11B

VT-VSPA1-1-11B

by Bosch Rexroth Indramat
$1,200.00 - $1,200.00
$1,200.00
$1,200.00 - $1,200.00
$1,200.00
In Stock, Ships Today
The Bosch Rexroth Indramat VT-VSPA1-1-11B Valve Amplifier boasts a clocked power output stage, capable of detecting cable breaks for input current in a 4-20mA range, along with solenoid conductors. This device features a selectable 50mA or 100mA pilot current, with maximum currents of 800mA or 1600mA depending on configuration. The amplifier has different selectable clock frequencies of 100Hz, 200Hz, 300Hz or 370Hz, determined by the setting of the S25 to S27 DIL switches. A time-adjustable ramp generator delivers a ramp-shaped output using a stepped input signal. The VT-VSPA1 series unit has a maximum ramp time of five seconds, a +/-9V +/-1% regulated voltage, and is compatible with Type VT 3002-1-2X/3D single cardholders sans power supply. It's ideal for controlling both pilot and direct operated pressure valves with only a single solenoid acting element. The 11 components series Amplifier also features a Ready-for-Operation message with an LED display.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Valve Amplifier
  • Model: VT-VSPA1-1-11B
  • Power Output Stage: Clocked
  • Cable Break Detection: Yes
  • Pilot Current: 50mA or 100mA
  • Maximum Current: 800mA or 1600mA
  • Clock Frequencies: 100Hz, 200Hz, 300Hz, 370Hz
  • Input Function: Current input with 4 to 20mA or 0 to 20mA rating
  • Components Series: 11
  • LED Display: Yes
  • Ramp Signal Time Constant: Adjustable
  • Front Plate Width: 1 TE soldering side, 3 TE component side
  • Weight: 0.1kg
  • Pre-Operation Procedure: Check DIL switches setting on PCB
  • Max Ramp Time: 5 seconds
  • Regulated Voltage: +/-9V +/-1%
  • Solenoid Conductor Indicator: H2 LED
  • Compatibility: Type VT 3002-1-2X/3D single cardholders without a power supply unit
  • Application: Controlling both pilot and direct operated pressure valves with one solenoid as actuating element
