VT-VSPA1-1-1X

Original price $1,447.83 - Original price $2,293.10
Original price
$1,447.83
$1,447.83 - $2,293.10
Current price $1,447.83

In Stock, Ships 1 - 3 Days

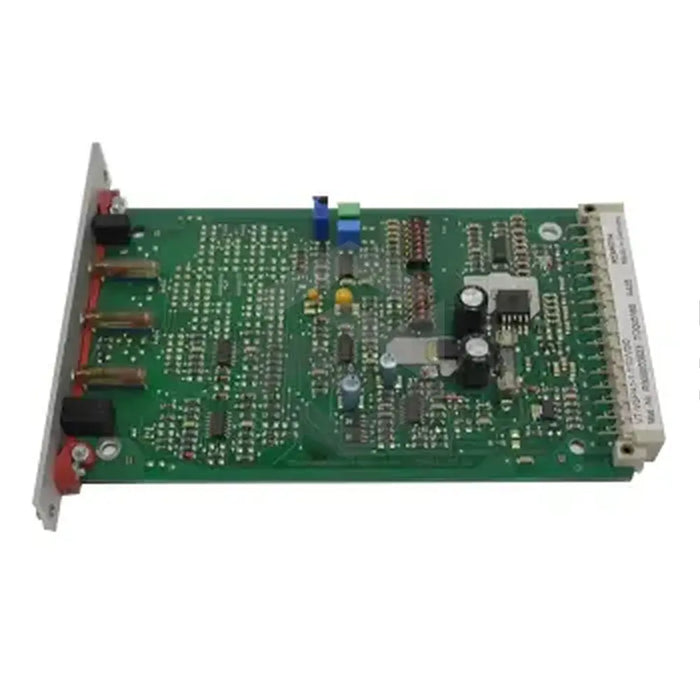

The VT-VSPA1-1-1X is a proportional valve amplifier, produced by Bosch Rexroth Indramat as part of the VT-VSPA1 series. It features a 32-pin male connector and analog part design. Along with a current rating of 1.8A and output of 800 – 1600mA Solenoid, it also carries a voltage rating of 24VDC and power rating of 50VA. The amplifier's frequency is 250 Hz, with an operating temperature of 0 to 50°C. The device uses a differential input enabling a switch between current input and voltage. Notable features include an adjustable built-in ramp generator, clocked output stage, LED operation indicator, and various protection mechanisms. These include polarity protection and short circuit protection of the solenoid cable, and a fail-safe solenoid cable break detector. It weighs around 0.1kg and measures 182 by 20 by 128.4 mm in depth, width, and height respectively.

Contact Us

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer


Bosch Rexroth Indramat

Product Type


Proportional valve amplifier

Series


VT-VSPA1

Connection


32 pin male connector

Current Rating


1.8A

Current Output


800 – 1600mA Solenoid

Voltage Rating


24VDC

Power Rating


50VA

Frequency Rating


250 Hz

Temperature Rating


0 to 50 degrees Celsius

Component Series


1X or 10 to 19

Operating Voltage


+24 VDC +40 % - 5%

Features


Pressure valves, differential input, LED indicator lamp, protection against reverse polarity and short circuit

Weight


0.1kg

Dimensions


182 by 20 by 128.4 mm (depth, width, height)
