VT-VSPA1-1-F10

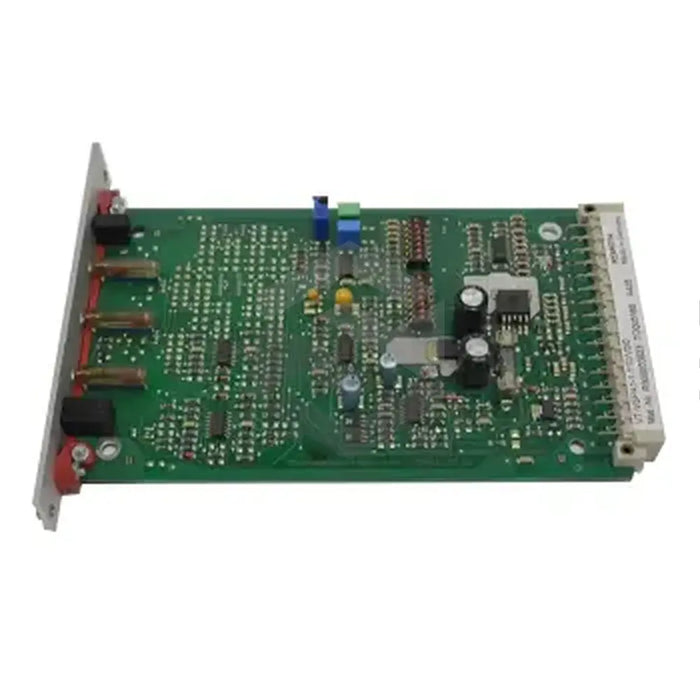

The VT-VSPA1-1-F10 Valve Amplifier, an offering by the Rexroth Bosch Group, is engineered for compatibility with proportional pressure valves that lack electrical position feedback. Designed to be housed in Type VT 3002-1-2X/32D single cardholders without power supply units, it operates within a 0°-50°C range. LED H2 indicates the absence of cable breaks, short circuits or output stage overload. The Amplifier functions on a 24VDC operating voltage, with a 1.8A maximum current consumption. Featuring a solenoid with a maximum current rating of 800mA or 1600mA (based on the S17 DIL switch setting), it employs a 32-pole multipoint male connector for connectivity. Housed on a Euro-card and protected by a DIN-standard front plate, it ensures a stable and consistent current, provided it is operated at a minimum distance of 1m from radios, aerial lines and radar systems. Ideal solenoid conductors are less than or equal to 50m in length and shielded with a LiYCY 1.5mm2 line type.
