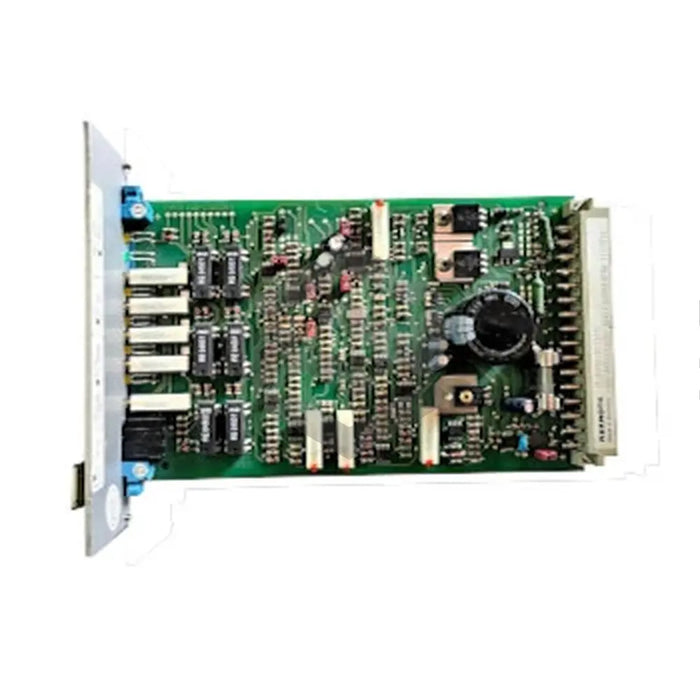

VT-VSPA1-10-1X-V0-0

by Bosch Rexroth Indramat
$2,541.00 - $2,541.00
$2,541.00
$2,541.00 - $2,541.00
$2,541.00
Available, Shipping Varies
The Bosch Rexroth Indramat VT-VSPA1-10-1X-V0-0 is an analog valve amplifier, designed to control proportional pressure valves, and formatted in a Euro-card structure. It boasts a differential input accepting 0-10V DC and a current input rated for 0-20 milliamps. The amplifier hosts a ramp generator with individually adjustable ramp times, and supports short-circuit protection and cable break detection for the solenoid conductor. A power supply unit with a current limit feature delivers all internal voltage requirements. The front panel has LED lamps indicating operational status. In terms of safety, it has a medium time-lag 2-Amp rated fuse. Its operational voltage ranges from 18-35V DC and power consumption stays under 24 VA. Its 48-pin male multipoint connector complies with DIN 41612 design F, and the standard Euro-card dimensions apply. The device is safe for temperatures between 0-50 degrees Celsius while in operation and -25-85 degrees Celsius in storage. It weighs 0.15 kg and should be handled while powered off, with measurements taken using instruments above 100 kilo-ohms resistance.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Analog Valve Amplifier
  • Format: Euro-card
  • Suitability: Proportional Pressure Valves Control
  • Differential Input: 0 to 10 Volts DC
  • Current Input: 0 to 20 milliamps
  • Ramp Generator: Separately adjustable up/down ramp times
  • Security Features: Short-circuit protection and cable break detection for solenoid conductor
  • Power Supply Unit: Integrated, provides all internally required supply voltages
  • Front Panel Indicators: LED Lamps for operational status
  • Safety Device: 2-Amp medium time-lag safety fuse
  • Operating Voltage: 24 Volts DC
  • Voltage Limit: +35 Volts DC (Upper), 18 Volts DC (Lower)
  • Power Consumption: Does not exceed 24 VA
  • Current Consumption: Does not exceed 2 Amps
  • Connection Type: 48-pin male multipoint connector, DIN 41612 design F compliant
  • Dimensions: 100 x 160 millimeters
  • Working Temperature Range: 0 to 50 degrees Celsius
  • Storage Temperature Range: -25 to 85 degrees Celsius
  • Net Weight: 0.15 kilograms
  • Operating Instruction: Only handle and assemble when powered-off
  • Measurement Tool Requirement: Instruments with input resistance exceeding 100 kiloohms
  • Distance from Radar/Aerial Systems: More than 1 meter
