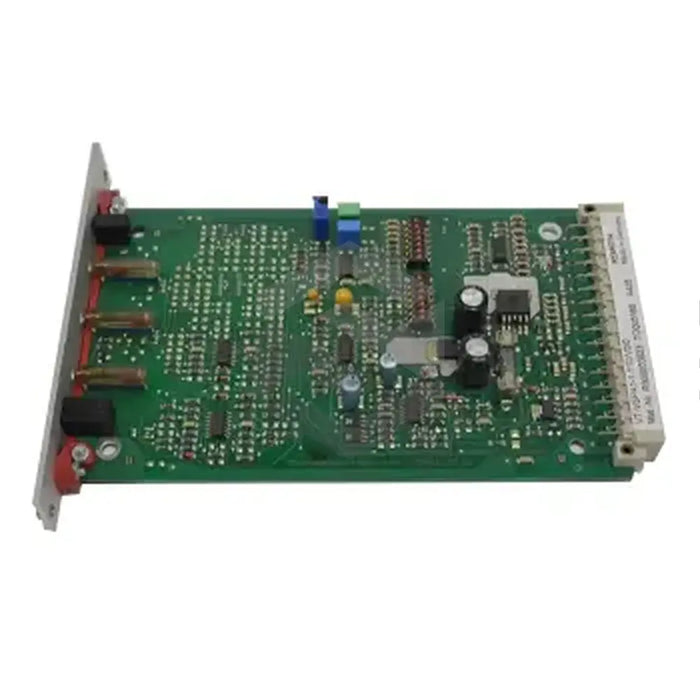

P image of VT-VSPA1-2-10-V0-0

VT-VSPA1-2-10-V0-0

by Bosch Rexroth Indramat
$2,256.57 - $2,663.73
$2,256.57
$2,256.57 - $2,663.73
$2,256.57
The VT-VSPA1-2-10-V0-0 is developed specifically to manage proportional pressure devices such as DBET-6X and DBEM...-7X. Equipped with a ramp generator, featuring separate adjustable up and down ramp times, this value amplifier also allows both internal and external ramp time pre-setting. Besides, it offers short circuit protection and quick detection for solenoid conductor cable breaks, plus reverse polarity protection for the supply voltage. The amplifier's power supply unit comes with a built-in current limiter, providing necessary positive and negative supply voltages. The product includes four command value call-ups, each accountable to external voltages defined by individual external potentiometers or by the voltage output +10V. Note that only one call-up can be activated at a time, with priority given to call-up w4 over the others, and the device should only be assembled when de-energized. This product weighs 0.15 kg.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product Model

VT-VSPA1-2-10-V0-0

Controllable Values

DBET-6X, DBEM...-7X

Differential Input

0 to +10V

Current Input

4 to 20mA

Up / Down Ramp Times

Adjustable

Short-Circuit Protection

Yes

Cable Break Detection

Yes

Reverse Polarity Protection

Supply voltage

Power Supply

With current limiter

Internal Command Value Signals

6

Standard Value 0% current input

4mA

Standard Value 0% differential input

0V

Standard Value 0% command value socket

0V

Standard Value +100% current input

20mA

Standard Value +100% differential input

+10V

Standard Value +100% command value socket

+10V

Command Value Call-ups

4 (w1 to w4)

External Voltages with Command Values

1 to 4

Limiters or Attenuators

Internal Potentiometers

Operating Practices

Only one call-up at a time

Priority

w4 highest, w1 lowest

Assembly Restrictions

Only assemble while de-energized

Weight

0.15 kg (net)
