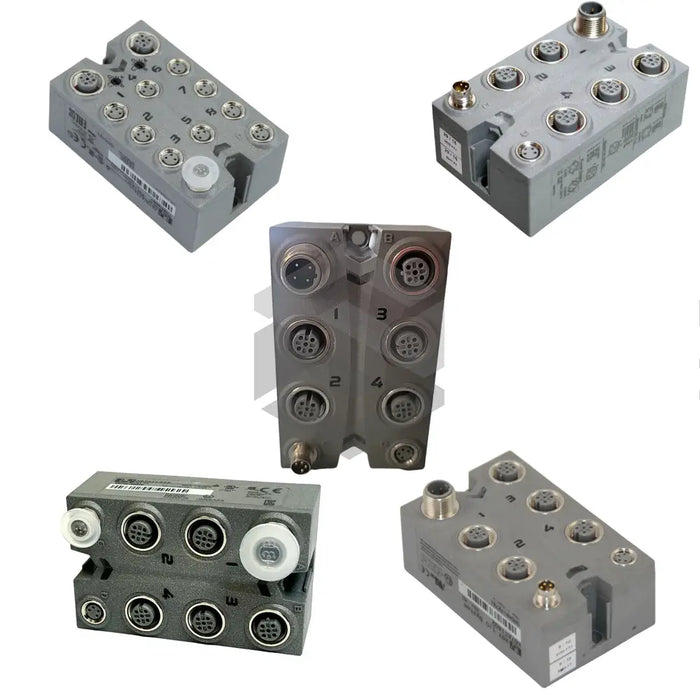

X67AO1223
The B & R Automation X67AO1223 module is part of the X67 Analog Input Output Modules series, designed to deliver precise analog control in industrial automation systems. This high-density unit provides 4 analog outputs with a 12-bit digital converter resolution for accurate signal generation, and operates within a voltage range of 18 to 30 VDC. Its primary function is to convert digital control commands from a controller into stable analog voltage signals, enabling precise regulation of actuators, valves, and other field devices in demanding industrial environments.
In terms of detailed technical specifications, the X67AO1223 measures 53 x 85 x 42 mm (W x H x D) and weighs only 190 g, making it a compact and lightweight solution. The module’s current limit is approximately 40 mA per channel, supporting a signal range of ±10 V. Power consumption is split between an internal draw of 4 W and an X2X link consumption of 0.75 W. The module requires a nominal 24 VDC I/O power supply and maintains an insulation voltage of 500 V between each channel and the bus, ensuring signal integrity and reducing the risk of cross-channel interference.
Built for rugged industrial use, the X67AO1223 features IP67 protection class rating and optimal shielding on all channels, safeguarding against dust, moisture, and electromagnetic interference. Status indicators for I/O function per channel, power supply, and bus function provide real-time monitoring and facilitate rapid diagnostics. Rated for an operating temperature range of -25 to 60 °C, this module delivers reliable performance under extreme conditions. By integrating this module into automated control systems, engineers benefit from enhanced durability, precise analog output, and simplified installation, all of which contribute to increased system uptime and operational efficiency in industrial applications.
