S image of X67BC4321-10

X67BC4321-10

by B & R Automation
$4,041.16 - $4,445.28
$4,041.16
$4,041.16 - $4,445.28
$4,041.16

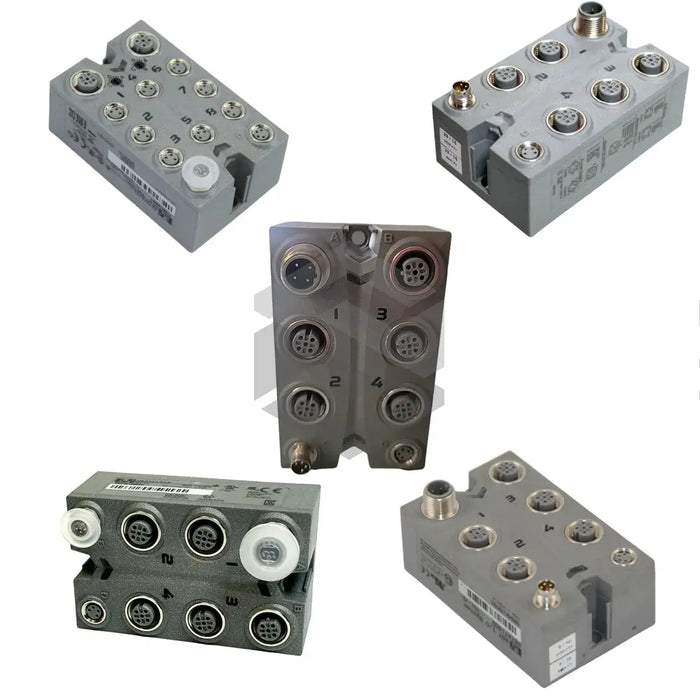

The B & R Automation X67BC4321-10 module from the X67 Analog Input Output Modules series is an IP67-rated, high-density I/O device designed for industrial applications. This compact unit operates on 24 VDC and draws 0.5 A via its X2X link 3 W power supply, featuring galvanically isolated CAN bus communication through a 1 CANopen interface. Eight configurable digital channels support versatile I/O tasks, while a configurable input filter and 2 event counters (50 kHz) ensure precise signal processing. Fieldbus connections are provided by M12 A‑coded and M12 B‑coded X2X link connectors. Status indicators report per‑channel I/O, bus function and power, and transfer rates up to 1 Mbit/s are supported without bus synchronization. The module operates reliably from -25 to 60 °C, making it ideal for demanding industrial environments.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Current

0.5 A

Digital Channels

8 channels, configurable as inputs or outputs

Environmental Rating

IP67

Event Counters

2 counters, 50 kHz

Fieldbus Connector

M12 A-coded

Input Filter

Configurable

Interface

1 CANopen interface

Isolation

Galvanically isolated CAN bus

Operating Temperature

-25 to 60 degrees C

Power Supply

X2X Link 3 W

Status Indicators

I/O function per channel, power supply, bus function

Synchronization

No synchronization between buses

Transfer Rate

Up to 1 Mbit/s

Voltage

24 VDC

X2x Link Connector

M12 B-coded
