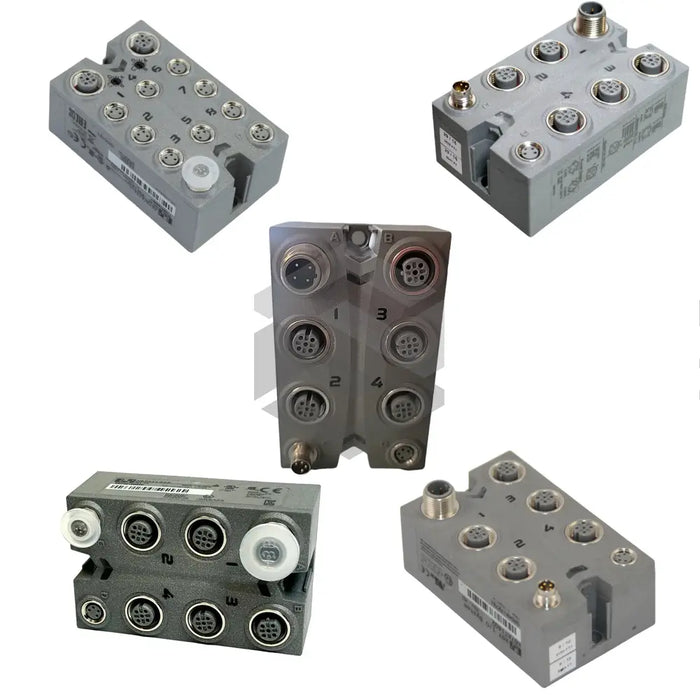

S image of X67CA0X01.0050

X67CA0X01.0050

by B & R Automation
$624.91 - $687.40
$624.91
$624.91 - $687.40
$624.91
The X67CA0X01.0050 by B&R Automation is a high-performance X2X Link connection cable, designed for reliable signal and power transmission in industrial settings. At 5 meters long, it features a thermoplastic polyurethane (TPU) jacket, offering superior flexibility and resistance to harsh environments. The cable measures 6.9 mm in diameter and supports a minimum bending radius of 15 times its outer diameter, facilitating easy installation in tight spaces. It houses 2 signal cores (0.25 mm², AWG 24) and 2 power cores (0.34 mm², AWG 22) shielded by an 85% tinned copper braid for reduced electromagnetic interference. Equipped with M12, 4-pin, straight connectors, it ensures a secure, error-free connection, with a voltage capacity of 250 V and current rating of 4 A per contact at 40°C. The cable meets the IP67 standard per EN 60529, providing excellent dust and water protection. Operating in temperatures from -40 to 80°C, it is lightweight at 0.063 kg/m, suitable for diverse environments.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product

X67CA0X01.0050

Manufacturer

B&R Automation

Product Type

X2X Link connection cable

Length

5 m

Material

Thermoplastic polyurethane (TPU)

Diameter

6.9 mm ±0.2 mm

Minimum Bending Radius

>=15 x outer diameter

Signal Cores

2 x 0.25 mm^2 (AWG 24)

Power Cores

2 x 0.34 mm^2 (AWG 22)

Shielding

Tinned copper braid with 85% coverage

Connector Type

M12, 4-pin, straight

Pinout Configuration

Pin 1: red, Pin 2: white, Pin 3: black, Pin 4: blue

Operating Voltage

250 V

Current Rating

4 A per contact at 40°C

Protection Standard

IP67 (EN 60529)

Operating Temperature Range

-40 to 80°C (fixed installations)

Weight

0.063 kg/m

Country of Manufacture

Austria

Application

Industrial automation and critical connections
