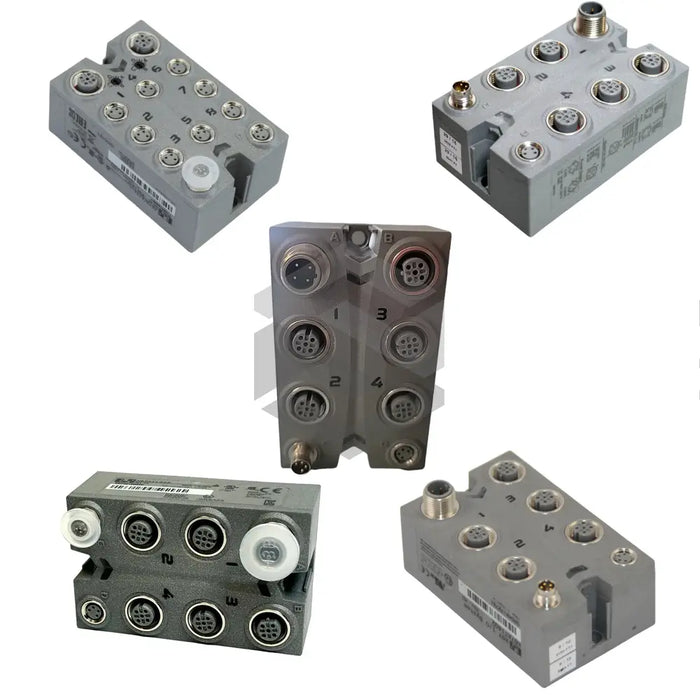

S image of X67DM1321.L08

X67DM1321.L08

by B & R Automation
$1,827.35 - $2,448.35
$1,827.35
$1,827.35 - $2,448.35
$1,827.35

Available, Shipping Varies

The B & R Automation X67DM1321.L08 module from the X67 Analog Input Output Modules series combines 8 digital inputs and 8 high-side switching outputs in an IP67 enclosure, supporting a nominal voltage 24 VDC (18–30 VDC) and a sensor/actuator power supply 0.5 A summation current with a total nominal current 8 A. It delivers high-speed performance with an input frequency Max. 50 kHz and ensures safety with insulation voltage between channel and bus 500 Veff. Power consumption is optimized at 3 W Internal I/O and 0.75 W X2X Link, while output circuits source current with leakage below 5 µA and residual voltage under 0.3 V at 0.5 A nominal current. M8/M12 connections simplify field integration.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Input frequency

Max. 50 kHz

Insulation voltage between channel and bus


500 Veff

Leakage current when the output is switched off

5 µA

Nominal output current

0.5 A

Nominal voltage


24 VDC

Output circuit

Source

Peak short-circuit current


<12 A

Power consumption Internal I/O

3 W

Power consumption X2X Link power supply

0.75 W

Residual voltage


<0.3 V at 0.5 A nominal current

Sensor/Actuator power supply

0.5 A summation current

Total nominal current

8 A
