X67DV1311.L08

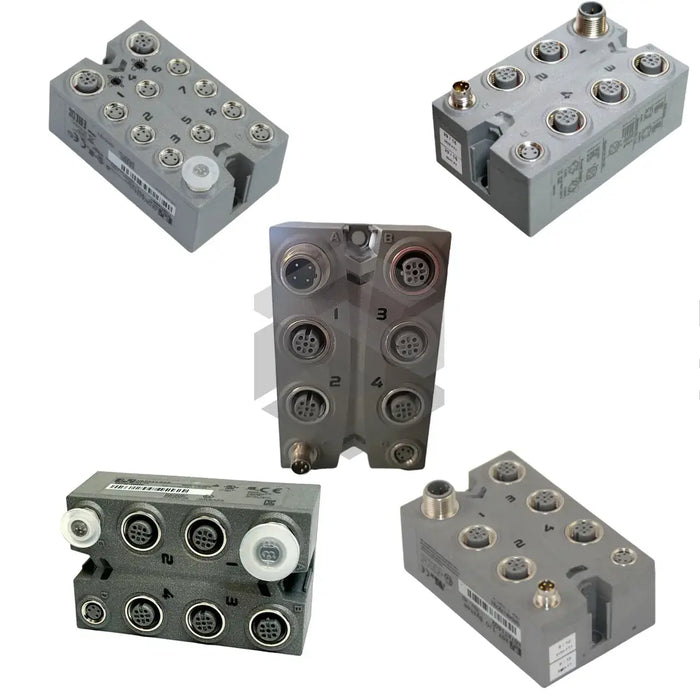

The B & R Automation X67DV1311.L08 module is a highly reliable component in the X67 Analog Input Output Modules series designed for demanding industrial automation tasks. This compact Input/Output Module features 8 digital inputs and 8 digital outputs with each output channel delivering 0.5 A at 24 VDC, yielding a total output current of 4 A. Encapsulated in a robust plastic housing, it achieves anstrong>IP67 protection class rating for complete dust ingress prevention and water immersion resilience. With an operating temperature range from -25…+60 °C, the X67DV1311.L08 supports extended environmental conditions common in factory and process automation. Comprehensive diagnostics, including fast anomaly detection in 10 µs, and 500 V RMS isolation between the system bus and the field I/O ensure reliable operation in high-noise electrical environments.
Technical specifications of the X67DV1311.L08 reflect meticulous engineering: the module accepts a Module Supply Voltage of 18…30 VDC and the Input Type is 24 VDC, 3-wire with an Input Current of 6 mA per channel. Outputs are configured as 24 VDC, 2-wire, Source circuits, each sustaining 0.5 A. Connectivity is enabled via an M12 connection type, while Dimensions of 35 x 26.5 x 195 mm and a lightweight plastic housing facilitate integration into tight machine cabinets. The design meets CE and cULus standards, ensuring compliance with international safety and performance regulations.
In operational contexts, the X67DV1311.L08 draws approximately 0.75 W for the integrated X2X link communication interface and only 4.4 mA of input current when energized at 24 VDC, minimizing power overhead. An inbuilt circuit protection breaker limits damage from reverse polarity and short-circuit events, allowing uninterrupted field device connections. The module’s integrated power distribution can supply up to 12 W to sensors or actuators directly, reducing the need for external power supplies. Rapid diagnostics report any open circuits or shorts within 10 µs, eliminating spurious signals and enhancing system safety under dynamic load conditions.
The module’s compliance with B & R Automation’s X2X high-speed backplane ensures seamless integration into the Automation PC and PLC ecosystems, simplifying topologies in complex control systems. The X67 Analog Input Output Modules series, including part number X67DV1311.L08, is optimized for machine builders, packaging lines, and process plants that demand compact, rugged I/O with fast response and high channel density. Its combination of environmental resilience, precise diagnostics, and power distribution capabilities make it ideal for valve manifold control, motor feedback loops, and distributed sensor networks in modern industrial automation applications.
