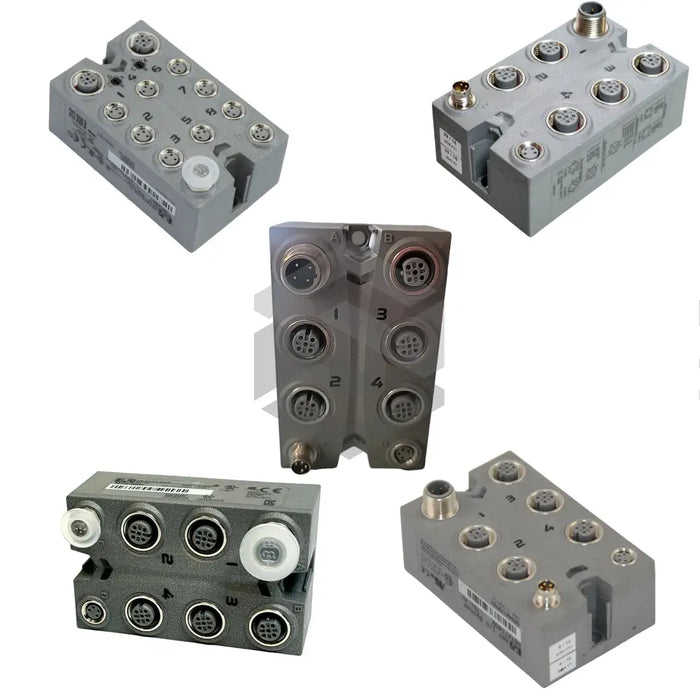

X67SM4320

Original price $0.00 - Original price $0.00
Original price
Request a Quote
$0.00 - $0.00
Current price Request a Quote

Request a quote

Add a Message
The X67SM4320, manufactured by B&R Automation, is a robust stepper motor module designed for precise control in harsh environments. Operating with a 24 VDC ±25% I/O supply voltage, it supports four motor connections with continuous and peak currents of 1 A and 1.5 A (for 2 seconds), respectively. It features a maximum current handling of 6 A, controller frequency of 38.5 kHz, an intermediate circuit capacity of 440 μF, and a step resolution of 256 microsteps per full step. The module efficiently uses 2 W internally for I/O and 0.75 W for X2X link supply and comes with an IP67 rating to withstand demanding conditions, operating from 0 to 50°C. With dimensions of 53 x 85 x 42 mm and weighing 195 g, it is compact and durable. Certified for hazardous locations (CE, UKCA, ATEX Zone 2, II 3G Ex nA IIA T5 Gc, TUV 05 ATEX 7201X, cULus E115267, cCSAus 244665), it assures reliability in high-performance motor control applications.

Contact Us

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product


X67SM4320

Manufacturer


B&R Automation

Module Type


Stepper Motor Module

I/O Supply Voltage


24 VDC ±25%

Motor Connections


Up to 4

Continuous Current


1 A

Peak Current


1.5 A for 2 seconds

Maximum Current


6 A

Controller Frequency


38.5 kHz

Intermediate Circuit Capacity


440 uF

Step Resolution


256 microsteps per full step

Internal Power Consumption


2 W

X2X Link Supply Power Consumption


0.75 W

Ingress Protection


IP67

Operating Temperature Range


0 to 50 degrees C

Dimensions


53 mm x 85 mm x 42 mm

Weight


195 g

Certifications


CE, UKCA, ATEX Zone 2 II 3G Ex nA IIA T5 Gc, TUV 05 ATEX 7201X, cULus E115267, cCSAus 244665
