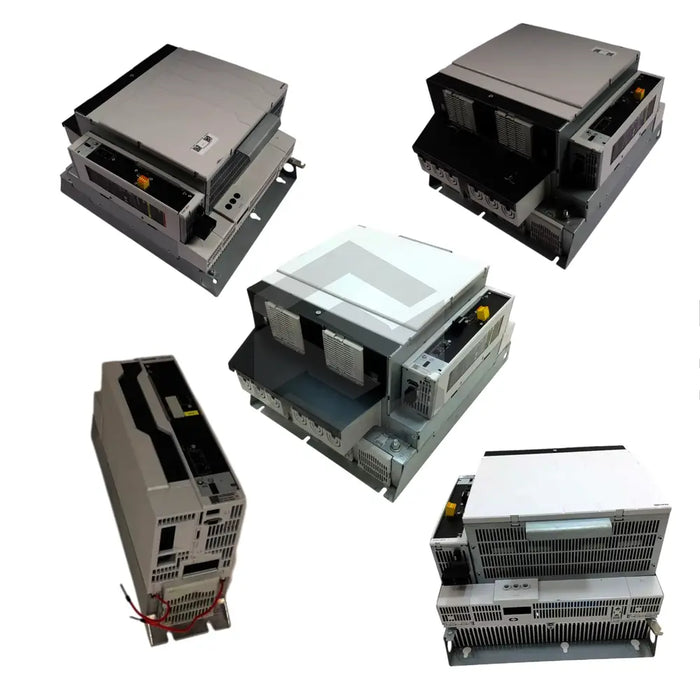

S image of XCS2-W0070ARN-02AETM5NNNN-S03RSN2NNNN5NN

XCS2-W0070ARN-02AETM5NNNN-S03RSN2NNNN5NN

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

The Bosch Rexroth Indramat XCS2-W0070ARN-02AETM5NNNN-S03RSN2NNNN5NN converter is a state-of-the-art industrial power module within the XCS Single Axis CtrlX Converters series, designed to deliver robust performance in precision automation environments. This single-axis converter supports a continuous current of 35 A and a maximum current of 70 A, providing ample drive capacity for demanding motion control tasks. It features an internal air cooling system, ensuring efficient thermal management during sustained operation. With a compact footprint measuring Width 100 mm and Height 364 mm, and an unpacked weight of 7 kg, the unit offers a high power-to-weight ratio ideal for constrained installation spaces. The device operates at a maximum switching frequency of 1600 Hz, enabling rapid current modulation for high-speed positioning and torque control tasks.

Equipped with advanced connectivity, this converter integrates a Multi-Ethernet communication interface supporting EtherCAT (SoE) protocol for seamless data exchange with modern industrial networks. The drive logic is managed by the ctrlX DRIVEplus control hardware, facilitating precise real-time control loops. Safety is built in with the SafeMotion (M5) function, providing dynamic monitoring and safe torque off capability. The power section includes an integrated braking transistor/braking resistor, ensuring smooth deceleration and energy recovery. For installation flexibility, the module comes with panel but is supplied without motor connector set, and it does not require an export license (maximum output < 599 Hz). Additional hardware options are not equipped, and no extra design features are specified, simplifying configuration and reducing system complexity.

Engineered for reliability, this converter’s robust construction and internal cooling method minimize downtime and extend service life under continuous loads. Its streamlined design and standardized Product group Id 4,6 integration make it straightforward to implement within existing ctrlX drive ecosystems. Typical applications include precision motion control in semiconductor production, renewable energy systems, food processing lines, packaging machinery, textile manufacturing, and medical equipment automation. The converter’s high switching frequency and current handling capacity ensure responsive torque delivery and smooth operation across a wide range of industrial tasks. With its blend of advanced network compatibility, built-in safety features, and compact form factor, the Bosch Rexroth Indramat XCS2-W0070ARN-02AETM5NNNN-S03RSN2NNNN5NN stands as a versatile solution for next-generation industrial automation challenges.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Communication Type

Multi-Ethernet

Protocol

EtherCAT (SoE)

Motor Connector Set

Without motor connector set

Control Hardware

ctrlX DRIVEplus

Cooling Method

Air, internal

Export License Requirement

No (maximum output < 599 Hz)

Safety Function

SafeMotion (M5)

Hardware Option 2 Detail

Not equipped

Hardware Option 3 Detail

Not equipped

Maximum Current

70 (A)

Additional Design Features

None

Panel Option

With panel

Power Section Option Detail

Integrated braking transistor/braking resistor

Description

ctrlX DRIVE, Single-axis converter, Generation 2

Unpacked Weight

7 kg

Switching Frequency / Max. Output Frequency (@16khz)

0-1600

Width

100

Product group Id

4,6

Continuous Current

35

Height

364
