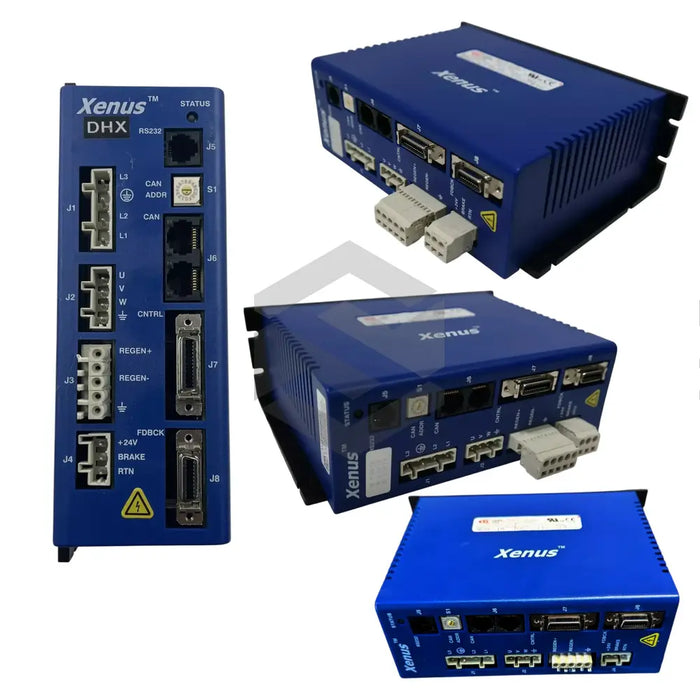

XEC-230-12
The Copley Controls XEC-230-12 is a high-performance module in the XENUS Digital Loop Modules series designed for precision industrial motion control. This compact drive delivers a peak current of 12 Adc (8.5 Arms) and a continuous current of 6 Adc (4.24 Arms) while maintaining an efficiency greater than 97% @230 Vac. Engineered for demanding applications, it digitally manages current, velocity, and position loops to ensure accurate, responsive control in automated systems.
In its technical configuration, the XEC-230-12 leverages a robust +20~32 Vdc control power supply and operates a current loop sampling rate of 16 kHz (62.5 μs), with velocity and position loops at 4 kHz (250 μs). The module accepts a mains voltage range of 100~240 Vac ±10%, compatible with single- and three-phase supplies at 47~63 Hz. Maximum mains currents are rated at 9.4 Arms (1Ø) and 5.2 Arms (3Ø), with inrush peaks of 15 A @120 Vac and 35 A @240 Vac, enabling reliable startup under varied supply conditions.
Designed for seamless integration, the XEC-230-12 features a minimum load inductance of 200 μH line-to-line and a compact footprint of 7.54 × 4.55 × 2.13 in (191.4 × 115.6 × 54.1 mm), weighing 2.2 lb (1.0 kg). It complies with critical safety and performance standards including IEC 61508-1:2010, IEC 61508-2:2010 (SIL 3) and UL 61800-5-1, ensuring dependable operation and regulatory conformance. The result is an efficient, durable, and versatile solution that enhances precision, uptime, and safety in industrial automation environments.
