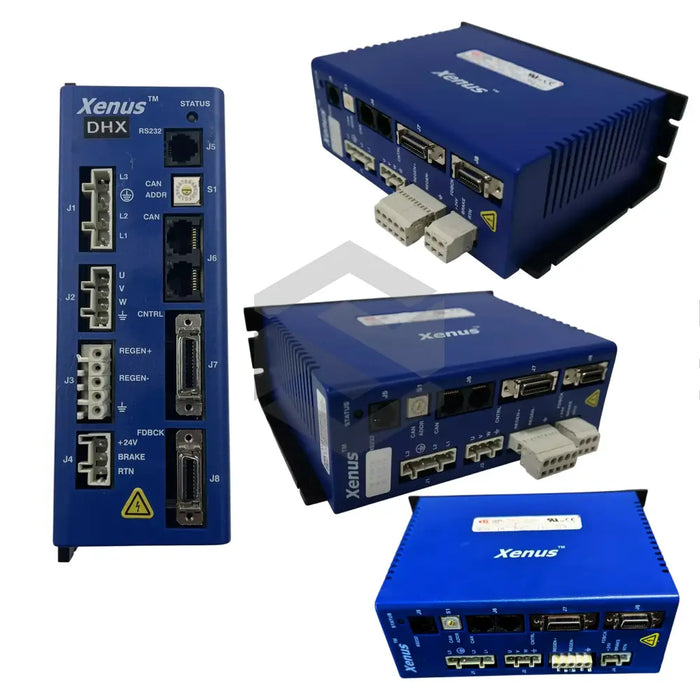

XEL-230-40

The XEL-230-40 module, manufactured by Copley Controls and part of the XENUS Digital Loop Modules series, delivers a robust and versatile solution for modern industrial automation. Engineered as a Controller Module with a Power Supply range of 100-240 VAC, it accommodates diverse global power systems while maintaining stable operation. Equipped with 2 CAN interfaces and electrically electrically isolated signal lines, the XEL-230-40 ensures reliable data exchange and minimizes interference in high-noise environments. This module is designed as a screw-in module (mounting requires the TB712 terminal block ordered separately), facilitating straightforward installation and field replacement. With a Power Consumption of just 14.5 W and built-in Network Capability, the XEL-230-40 supports scalable network topologies in demanding control architectures. Its compact footprint and standardized interface set simplify integration with existing drives and controllers.

Performance characteristics of the XEL-230-40 emphasize precision and adaptability. The module offers 15 digital inputs and 6 digital outputs for granular monitoring and control of auxiliary devices, enabling synchronized operations across multiple axes. In continuous operation the module handles a continuous current of 20 A and can withstand peak demands up to 40 A maximum current, accommodating both light-duty positioning tasks and heavy-load motion profiles. It supports multiple feedback protocols, ensuring compatibility with a wide range of encoder and resolver systems for high-resolution positioning. The dual CAN interfaces provide deterministic communication, while the electrically electrically isolated I/O channels protect sensitive electronics from ground loops and voltage spikes. Flexible configuration options allow fine-tuning of loop gains and control parameters, optimizing performance for servo-driven conveyors, gantry systems, or robotic manipulators.

Reliability and safety integration are cornerstones of the XEL-230-40 platform. Certified by TÜV SÜD for Safety Integrity Level (SIL) capabilities, this module meets stringent functional safety requirements for critical industrial applications. Its robust design withstands harsh operating conditions common in manufacturing environments, backed by the solid reputation of Copley Controls hardware. The built-in Network Capability and standardized 100-240 VAC power input drive seamless compatibility with XP2 Drive families and broader control infrastructures. Compact and modular, the XEL-230-40 easily integrates into machine tool cabinets, packaging lines, and automated assembly cells, delivering dependable performance in high-reliability scenarios. With minimal maintenance needs and proven field durability, this module remains a cornerstone for engineers designing next-generation automation solutions.
