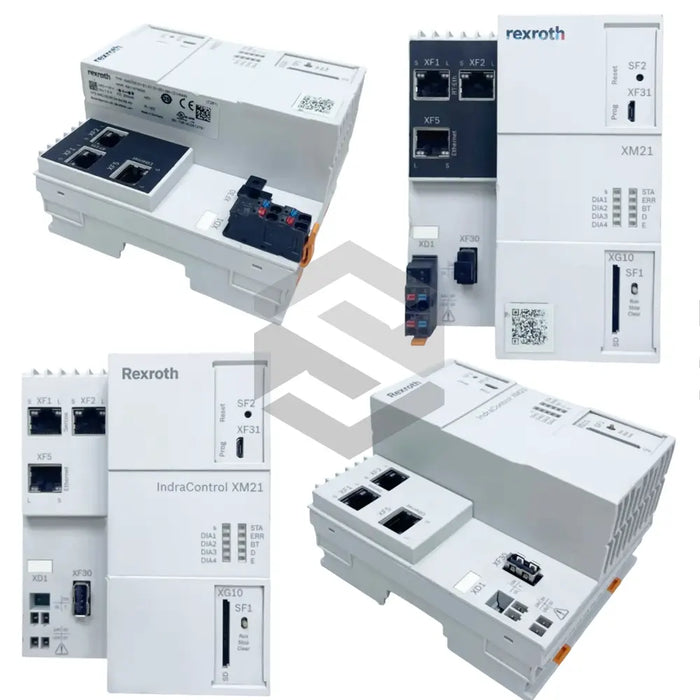

manufacturer image of XM2100.01-01-31-31-001-NN-100N1NN

XM2100.01-01-31-31-001-NN-100N1NN

by Bosch Rexroth Indramat
Request a quote
The XM2100.01-01-31-31-001-NN-100N1NN, a product by Bosch Rexroth Indramat, serves multiple industries as a tool for efficient control tasks. Key features include a 600 MHz Intel E60T processor, 512 MB DRAM, and an operating voltage of 24 VDC. In terms of power consumption, it requires 1A current and 36W maximum power. Additional specifications involve a 128 kB remanent memory and an SD card slot that accommodates at least a 1GB card. As a part of the Indramat motion control system, this model provides comprehensive solutions within a permissible altitude limit of 4700m above sea level and a humidity range from 5% to 95%. It also offers dust protection through its IP20 ingress protection. Temperature thresholds vary from +60 degrees Celsius below 2000m altitude to +45 degrees at 4700m. The model allows connections with three extension modules, supports 63 S20 I/O modules through its S20 interface, and is based on a PLC system with an OPC UA interface for communication.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: XM2100.01-01-31-31-001-NN-100N1NN
  • Processor: 600 MHz Intel E60T
  • Memory: 512 MB DRAM
  • Control Voltage: 24 VDC
  • Current Consumption: 1 A
  • Maximum Power Consumption: 36 W
  • Remanent Memory: 128 kB
  • SD Card Slot: Minimum 1 GB
  • Maximum Installation Height: 4700 m/sea level
  • Permissible Humidity Range: 5% to 95% (no condensation)
  • Ingress Protection: IP20 (12.5 mm dust particles)
  • Maximum Permissible Temperature: +60 degree Celsius up to 2000 m/sea level
  • Reduced Permissible Temperature: +45 degree Celsius at 4700 m/ sea level
  • System Basis: PLC
  • Communication Interface: OPC UA
  • Extension Modules Connectable: Three
  • Connection to I/O Modules: 63 S20 via S20 interface
