XM2100.01-01-31-31-001-NN-112NNNN

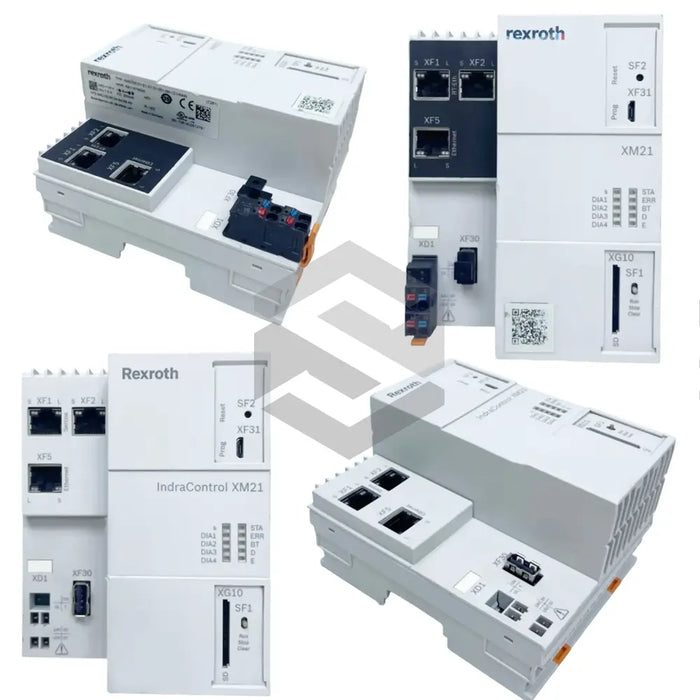

The Bosch Rexroth Indramat XM2100.01-01-31-31-001-NN-112NNNN controller is a high-performance embedded control unit in the XM21 IndraControl Systems series by Bosch Rexroth Indramat. This BR-Standard Variant features an Atom E620T processor clocked at 600 MHz for rapid execution of complex motion–control tasks. The module follows the FPGA Standard design and integrates seamlessly into standard Bosch Rexroth housings. With a Hardware Extension (XFE) of 0× module over XA-BS01, the unit maintains a compact footprint while offering expansion flexibility. Early connection diagnostics and built-in warning signals ensure safe operation throughout commissioning and maintenance.
Performance is driven by a remnant memory of 128 kilobytes paired with a minimum mass storage capacity of 1 gigabyte, providing robust data retention and program execution. Communication with servo drives and peripherals is handled by the Serial Real-Time Communication Interface, guaranteeing deterministic data exchange. An internal backup battery safeguards user data during power interruptions, while the unit’s Ambient Temperature rating up to +60°C accommodates elevated environmental conditions. The design further incorporates natural convection cooling to maintain optimal internal temperatures without forced airflow. Compliance with industrial EMC standards ensures minimal interference and consistent operation across a variety of installations.
Reliability is enhanced by the unit’s sturdy FPGA-based architecture and the proven Bosch Rexroth housing materials, delivering long service life in harsh environments. Integration into existing network topologies is simplified by standardized mounting and connector layouts, reducing installation time and complexity. The controller ships with a one-year warranty from Wake Industrial, reflecting the manufacturer’s confidence in product longevity. Typical applications include textile machinery, food processing equipment, woodworking systems, and other servo-driven production lines. Detailed configuration and application guidelines are provided in the official drive documentation to ensure optimal performance and reliability.
