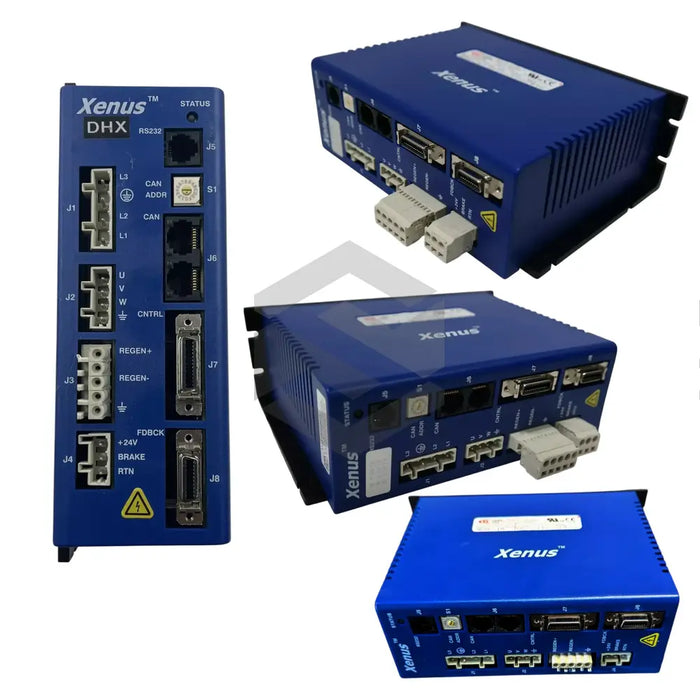

S image of XML-230-18

XML-230-18

by Copley Controls
$1,436.96 - $2,544.19
$1,436.96
$1,436.96 - $2,544.19
$1,436.96

In Stock, Ships 1 - 3 Days

The Copley Controls XML-230-18 drive from the XENUS Digital Loop Modules series delivers professional-grade performance for industrial automation, offering a Continuous Current rating of 6 Adc (4.24 Arms, sinusoidal) and a Peak Current of 18 Adc (12.7 Arms, sinusoidal) for up to 1 second. It accepts 100–240 Vac (±10%, 1Ø or 3Ø, 47–63 Hz) input with maximum mains currents of 10.1 Arms (single-phase) and 6.4 Arms (three-phase) while operating from 0 to +45 °C. The module measures 7.92×5.51×2.31 in and weighs 3.0 lb (1.36 kg) without heatsink, requiring +24 Vdc control power (20–32 Vdc, 500 mA max).

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

+24 Vdc Control Power

+20 to +32 Vdc, 500 mA max

Continuous Current

6 Adc (4.24 Arms, sinusoidal)

Dimensions

7.92 x 5.51 x 2.31 in (201.2 x 139.9 x 58.7 mm)

Mains Voltage, Phase, Frequency

100~240 Vac, ±10%, 1Ø or 3Ø, 47~63 Hz

Maximum Mains Current, 1Ø

10.1 Arms

Maximum Mains Current, 3Ø

6.4 Arms

Operating Temperature

0 to +45 °C

Peak Current

18 Adc (12.7 Arms, sinusoidal)

Peak Time

1 second

Storage Temperature

-40 to +85 °C

Weight

3.0 lb (1.36 kg) without heatsink
