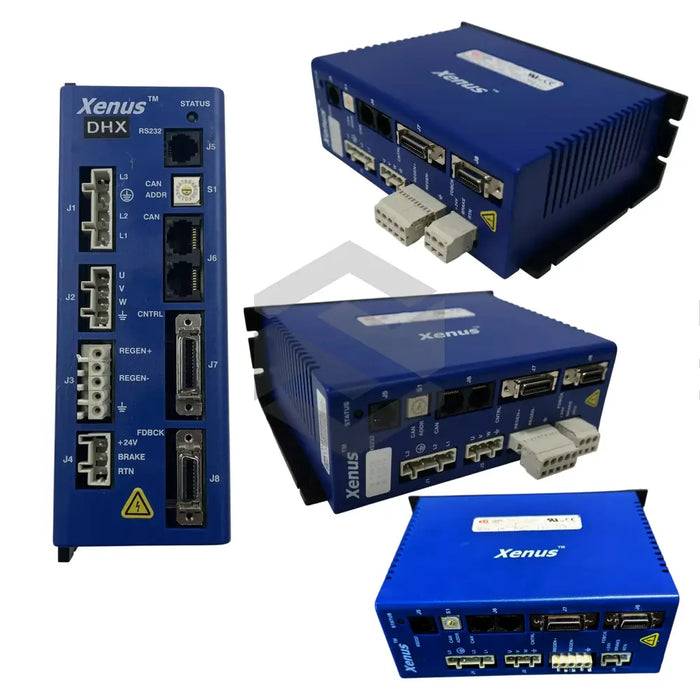

The XPL-230-36 from Copley Controls offers an output current peak of 36 Adc and supports input voltage of 100~240 Vac. Part of the XENUS Digital Loop Modules, this drive features digital control loops for current and velocity and measures 201.2 x 139.9 x 58.7 mm.
With a lightweight design of 3.0 lb and 15 digital inputs plus 6 digital outputs it ensures versatile industrial integration. It includes HV Overvoltage protection and operates across humidity levels from 0% to 95%.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Agency Standards Conformance
In accordance with EC Directive 2014/30/EU (EMC Directive)
Control Power
+20 to +32 Vdc, 500 mA max
Digital Control Loops
Current, velocity, position
Digital Quad A/b Encoder
5 MHz line frequency, 20 MHz quadrature count frequency
Input Power Mains Voltage
100~240 Vac, ±10%, 1Ø or 3Ø, 47~63 Hz
Maximum Mains Current, 1Ø
20.0 Arms
Mechanical & Environmental - Humidity
0% to 95% non-condensing
Mechanical & Environmental - Operating Temperature
0 to +45 °C
Mechanical & Environmental - Size
7.92 x 5.51 x 2.31 in (201.2 x 139.9 x 58.7 mm)
Mechanical & Environmental - Weight
3.0 lb (1.36 kg) for drive without heatsink
Output Current - Continuous
12 Adc (8.5 Arms)
Output Current - Peak
36 Adc (25.5 Arms)
Protection - Hv Overvoltage
+HV > 400 Vdc
Protection - Hv Undervoltage
+HV < 60 Vdc
Sampling Rate (frequency)
Current loop: 16 kHz, Velocity & position loops: 4 kHz
