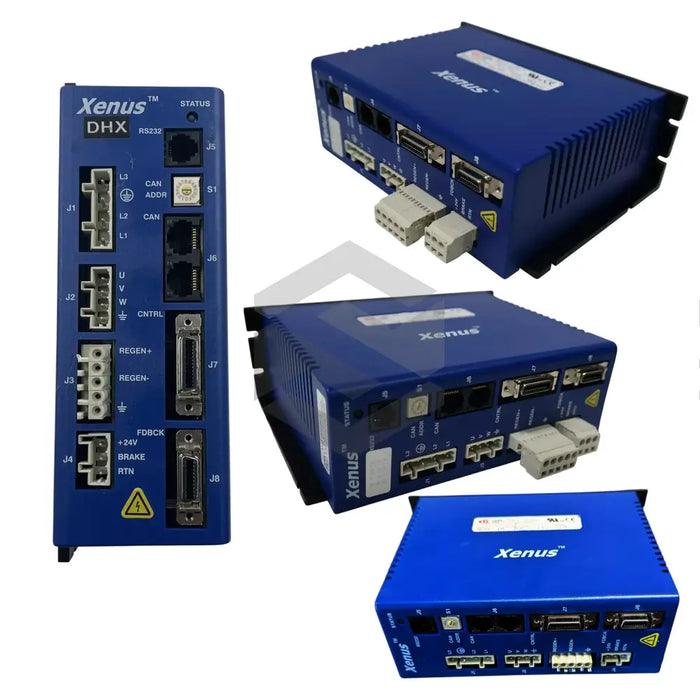

The XPL-230-36-HL is a digital loop module by Copley Controls in the XENUS Digital Loop Modules series, operating on 100 – 240 Vac with a 36 Adc peak and 12 Adc continuous current. It offers a CANopen interface and supports incremental and resolver feedback. Control modes include Profile Position and homing. Weighing 1.36 kg, it requires a heat sink for cooling.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Analog Input
±10 Vdc, 16-bit resolution
Command Interface
CANopen, ASCII, Discrete I/O, Stepper commands
Continuous Current
12 Adc
Control Modes (Interpolated Position, Homing)
Supported
Control Modes (Profile Position, Velocity, Torque)
Supported
Cooling
Heat sink or forced air required
Digital Outputs
6 current-sinking MOSFET outputs
Dimensions
7.92 x 5.51 x 2.31 in (201.2 x 139.9 x 58.7 mm)
Feedback Supported
Incremental, Absolute, Resolver
Max. Mains Current (1 Phase)
20 Arms
Output Voltage Range
±5 Vdc
Peak Current
36 Adc
PWM Input Frequency
1 kHz to 100 kHz
Voltage
100 – 240 Vac
Weight (without Heatsinks)
3.0 lb (1.36 kg)
