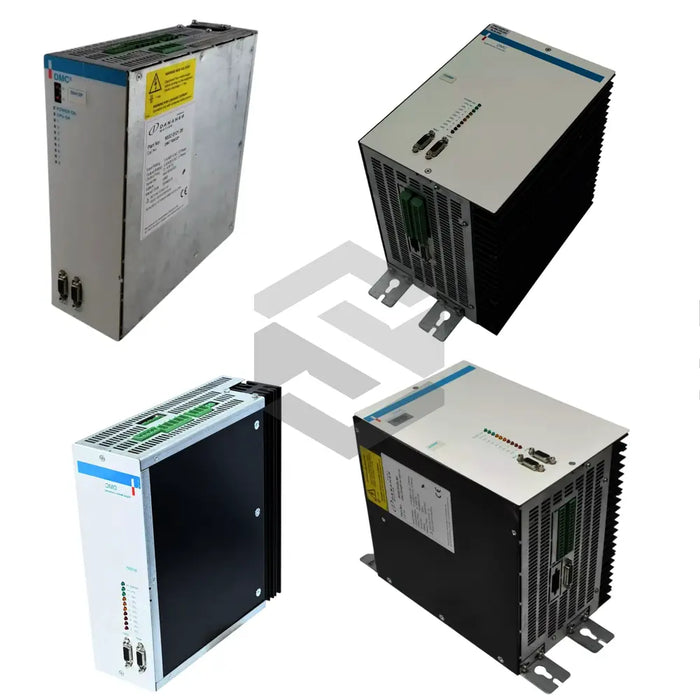

S image of DMC-50720-EXT-24V

DMC-50720-EXT-24V

by Danaher
$3,991.25 - $3,991.25
$3,991.25
$3,991.25 - $3,991.25
$3,991.25

In Stock, Ships Fast

The DMC-50720-EXT-24V, a product of reputable manufacturer Danaher Motion, is a highly efficient and robust servo drive designed for versatile applications. This three-phase, servo drive operates at an input rating of 5A/400V and an output rating of 5A/240V with an output frequency ranging from 0 to 400 Hz. Performance measures include a maximum current of 20A, continuous current at status of 7A, and a continuous power of 3 kW. The unit boasts an impressive efficiency rate at continuous current of 95%. Additional specifications include a speed linearity of less than 1% and torque linearity of +/-1% of full scale. It has a DC bus voltage of approximately 570 VDC and a shutdown DC bus voltage between 700-725 VDC. The unit remains functional under a variety of environmental conditions, supporting a temperature range of 0ºC to 60ºC, a humidity of 95%, and a storage temperature range of -20ºC to 80ºC.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Danaher

Product Type

Servo Drive

Input Rating

5A/400 V three-phase

Output Rating

5A/240 V three-phase

Output Frequency

0 to 400 Hz

Maximum Current

20 A

Continuous Current at 40C Standstill

7 Amps

Continuous Current RMS

4.5 A

Continuous Power

3 kW

Efficiency at Continuous Current

95%

Speed Linearity

less than 1%

Torque Linearity

+/-1% of full scale plus +/-2% of command value

Speed Loop Bandwidth

varies with load and motor

Current Open-Loop Bandwidth

2 kHz

Load Input Voltage

570 V DC + 10%: 20%

DC Bus Voltage

570 VDC + 10 %: -20%

Shutdown DC Bus Voltage

700 - 725 VDC

Shunt Regulation voltage

670 - 700 VDC

Ambient Temperature

0ºC to 60ºC

Humidity

95%

Storage Temperature

-20ºC to 80ºC
