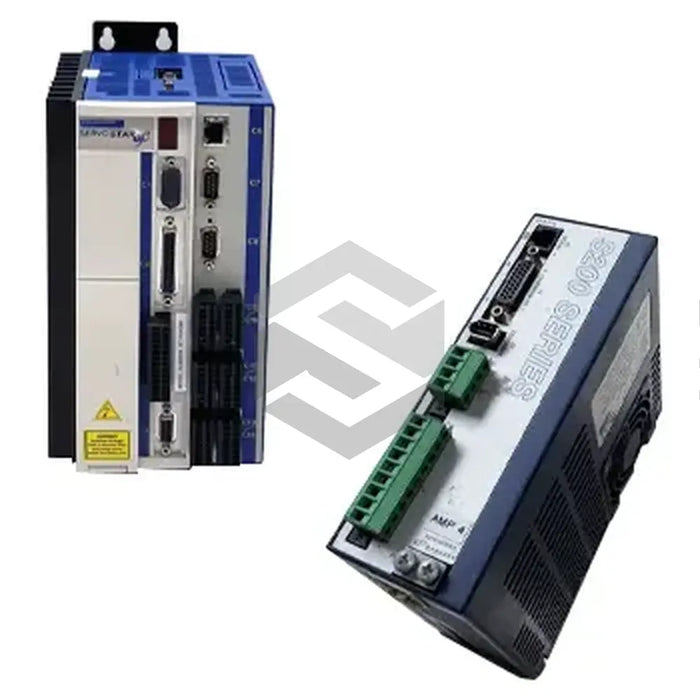

series image of S60100-PB

S60100-PB

by Danaher
$2,811.87 - $2,811.87
$2,811.87
$2,811.87 - $2,811.87
$2,811.87
In Stock, Ships Today
The S60100-PB is a Digital Servo Drive manufactured by Danaher, under the brand Kollmorgen’s SERVOSTAR 601 range. Part of the S600 series, this reliable and compact unit is a digital amplifier with a power rating of 1 A and includes a PROFIBUS option. It's built for compatibility with more than just the standard Kollmorgen digital servo motors, owing to its versatile installation software. It supports multiple feedback programs such as resolvers, BiSS, EnDat, incremental encoders, sine encoders, and Hiperface. This servo drive operates with a current output rated value of 1.5 Amps (+-3%) and peak output current of 3.6 Amps (+-3%). It works within a DC bus variation range of 290 to 675 V and a clock frequency of 8kHz. The safety feature includes a high voltage protection limit of 450 Volts. Despite these powerful features, it weighs just 4kg and fits into a compact 275x70x65 mm form. The S60100-PB performs efficiently from 0 to +45°C (or 32 to 113°F) at 85% relative humidity with no condensation.
30 Day Warranty
Technical Specifications
  • Manufacturer: Danaher
  • Product Name: S60100-PB
  • Device Name: SERVOSTAR 601
  • Series: S600
  • Power Rating: 1 A
  • Expansion Option: PROFIBUS
  • Expansion Type: None
  • Current Output Rated Value: 1.5 Amps (+-3%)
  • Peak Output Current: 3 6 Amps (+-3%)
  • DC Bus Variation: 290 to 675 V
  • Clock Frequency: 8 kHz
  • High Voltage Protection Limit: 450 Volts
  • Inductance Rating: 150 mH (peak load), 25 mH (minimum load)
  • Weight: 4 kg
  • Dimensions: 275 mmX70 mmX65 mm
  • Ambient Temperature Range: - 0 to +45°C (or 32 to 113°F)
  • Humidity: up to 85% (no condensation)
