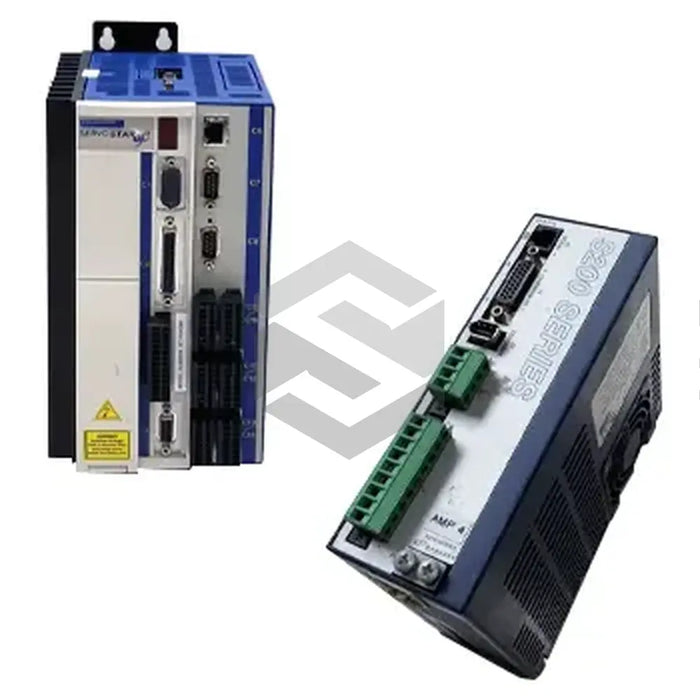

series image of SERVOSTAR-603

SERVOSTAR-603

by Danaher
Request a quote
The SERVOSTAR-603 is a digital servo amplifier, manufactured by Kollmorgen, a renowned company with several decades of industry experience. As part of the Servostar 600 series, the standard 603 model is designed for integration into electrical equipment and machines, and operates optimally with grounded three-phase industrial mains supply. It is suitable for driving synchronous, brushless servo motors with a DC bus link voltage equivalent to or higher than the amplifier. Its dimensions are 275 x 265 x 70 mm, minus connectors, and it weighs approximately 2.5kg. The amplifier's rated DC bus link voltage ranges between 290 to 675V, with a rated output current of 3A. Moreover, the SERVOSTAR-603 has an inbuilt overvoltage protection mechanism, with a maximum limit of 900V. It offers a front panel LED display for easy monitoring of functions, parameters and potential error messages, simplifying troubleshooting.
30 Day Warranty
Technical Specifications
  • Manufacturer: Danaher
  • Product Name: SERVOSTAR-603
  • Type: digital servo amplifier
  • Series: Servostar 600
  • Use Environment: Integrated component of machines and other forms of electrical equipment
  • Power Source: Grounded three-phase industrial mains supply networks
  • Motor Compatibility: Synchronous, brushless servo motors with a DC bus link voltage at least as big as the amplifier
  • Dimensions: 275 x 265 x 70 mm
  • Weight: 2.5kg
  • Rated DC Bus Link Voltage: 290 to 675V
  • Rated Output Current: 3A
  • Overvoltage Protection: Up to 900V
  • Load Inductance: 12mH-75mH
  • Connector Torque: X Series: 0.5-0.6Nm, Ground Bolt: 3.5Nm
  • Display: LED.
