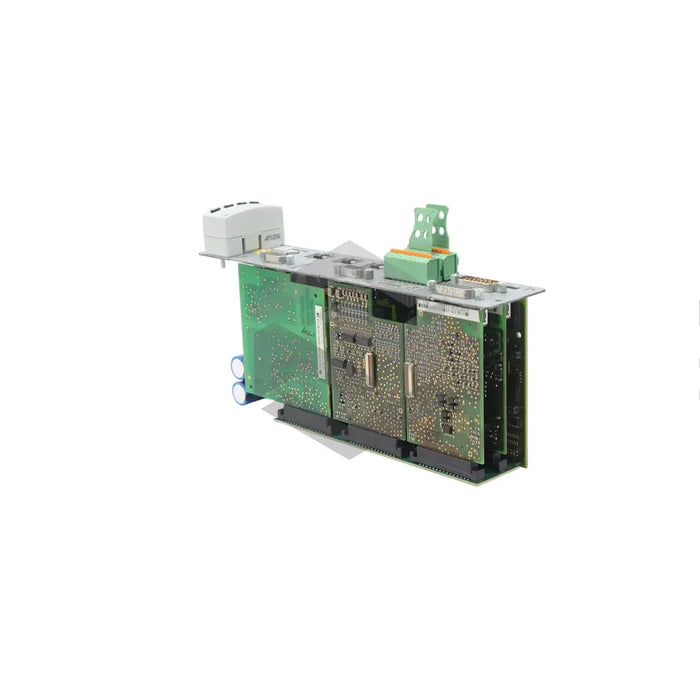

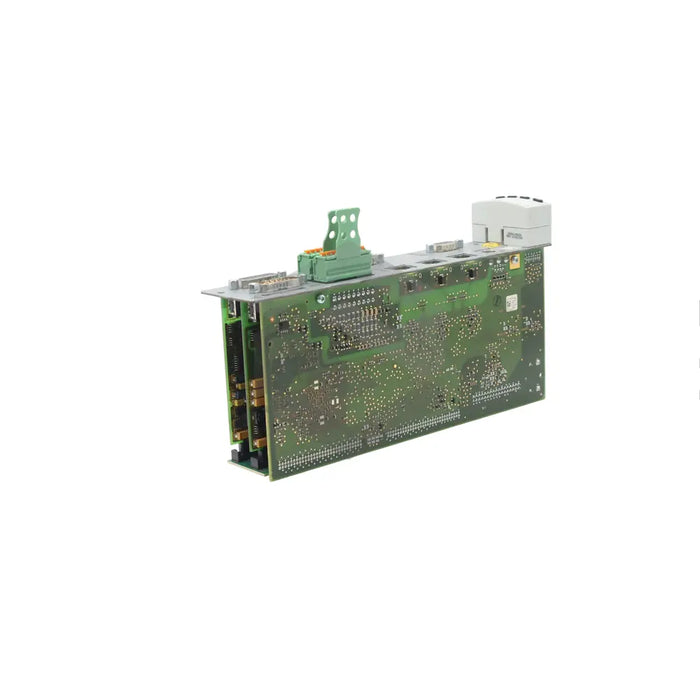

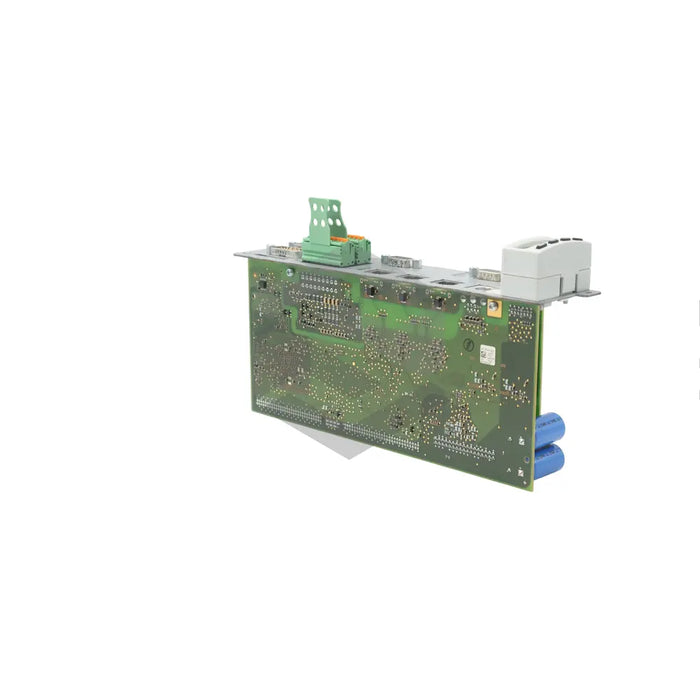

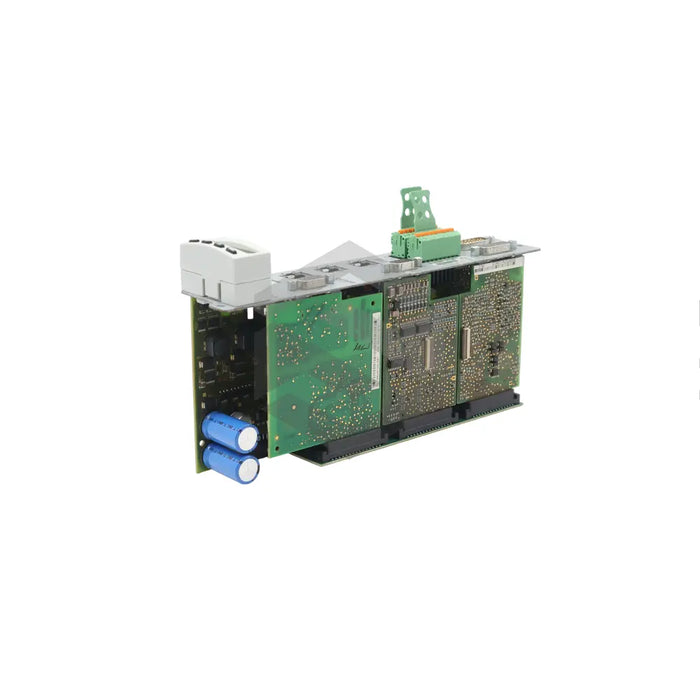

series image of CSH01.3C-PB-EN1-ENS-CCD-S2-S-NN-FW

CSH01.3C-PB-EN1-ENS-CCD-S2-S-NN-FW

by Bosch Rexroth Indramat
Request a quote
The Bosch Rexroth CSH01.3C-PB-EN1-ENS-CCD-S2-S-NN-FW is a part of the CSH series and functions as a single-axis control module incorporated into the IndraDrive drive controllers. These controllers administer control over electric motors and keep track of their operations as components of the Rexroth IndraDrive drive system. The control module employs the PROFIBUS communication interface which allows real-time interaction between system components, facilitating smooth control of automation tasks. Additionally, it includes a cross-communication module compliant with IEEE 802.3 standards and LED indicators for operational tracking. Its switching frequencies range from 2 kHz to 16 kHz. This control module also has a dedicated safety technology I/O offering functions such as safe maximum speed, safely-limited position, safe direction, and safe homing procedure. It possesses a standard control panel and a encoder interface designed for 12V, accommodating a variety of encoders.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Code: CSH01.3C-PB-EN1-ENS-CCD-S2-S-NN-FW
  • Product Type: Control Section
  • Series: CSH
  • Communication Interface: PROFIBUS
  • Additional Module: Cross Communication (IEEE 802.3 standard)
  • Switching Frequencies: 2 kHz, 4 kHz, 8 kHz, 12 kHz, and 16 kHz
  • Safety Technology: I/O module
  • Safety Features: Safe maximum speed, Safely-limited position, Safe direction, Safe homing procedure
  • Encoder Interface: Standard encoder evaluation
  • Encoder Supply Voltage: 12V
  • Types of Encoders: Sin-cos encoder (1 Vpp) with EnDat 2.1, 5V-TTL square-wave encoder with reference track, Sin-cos encoder (1 Vpp) with reference track
  • Control Panel: Standard
