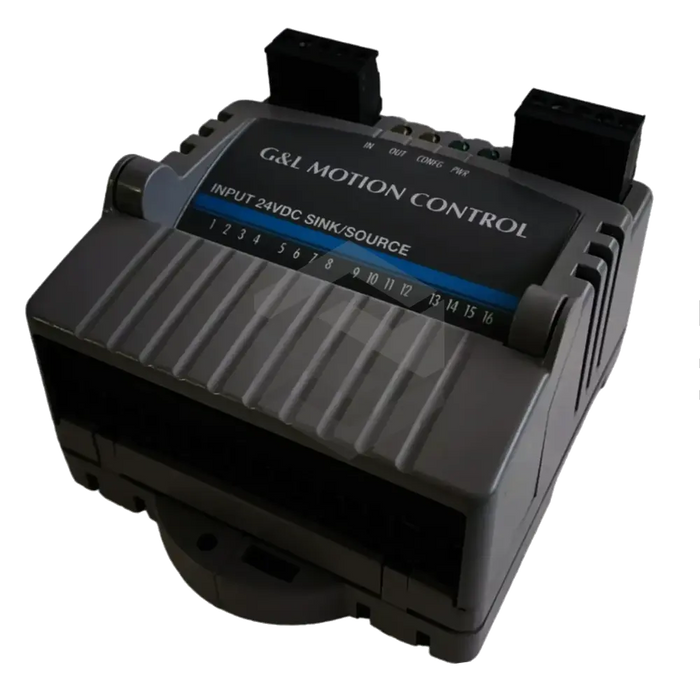

S image of M.1017.3143

M.1017.3143

by Danaher
$2,952.34 - $2,952.34
$2,952.34
$2,952.34 - $2,952.34
$2,952.34

In Stock, Ships 1 - 3 Days

The M.1017.3143 is a module by Danaher in the Block IO Analog Modules series. It features a 24 VDC, 300 mA power supply with 250 μs inrush, two 18-pin screw terminal field connectors and supports a step rate of 0–1,000,000 steps/s. Encoder inputs handle 2.5–7 VDC at 2.5–22 mA, while digital inputs operate at 0–30 VDC with a ≤1 ms response. Cooled by air, it endures 7–55 °C ambient temperatures and offers +5 V, 500 mA output capacity.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

+5 V output capacity

500 mA

Acceleration/deceleration rate

1–16,777,215 steps/s²

Cooling

Air cooled

Digital input current (max)

7.5 mA @ 30 VDC

Digital input response time

≤1 ms

Digital input voltage range

0–30 VDC

Encoder input current

2.5–22 mA

Encoder input voltage range

2.5–7 VDC

Encoder position range

24-bit counter

Encoder receiver

2231 differential

Field-side connector

2×18-pin screw terminals

Max encoder quad frequency

250 kHz

Min encoder pulse width

0.6 µs

Power supply

24 VDC, 300 mA (20–30 VDC); 1.1 A, 250 µs inrush

Step rate

0–1,000,000 steps/s

Stepper +V input

4.5–20 VDC, 45 mA/channel

Stepper output rating

15 mA sink, 5 mA source

Stepper position range

±2,147,352,575 steps

Warranty

12 months
