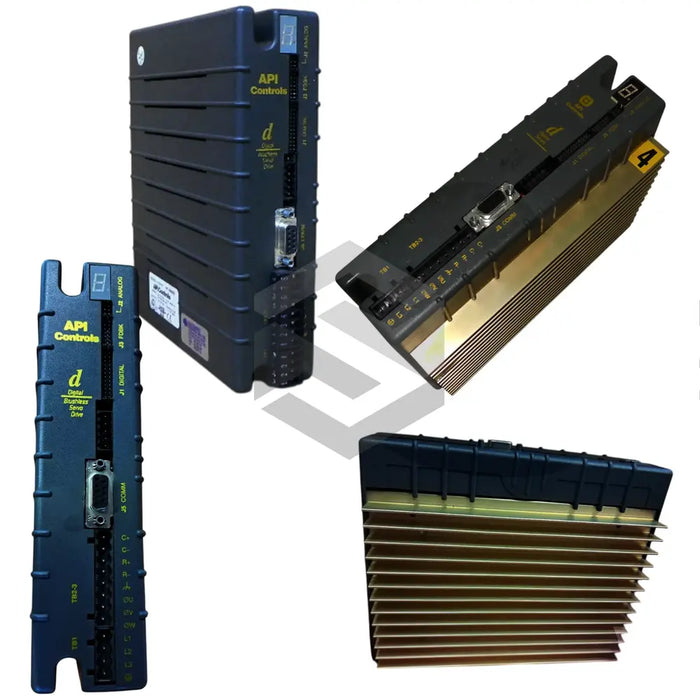

S image of P315-L

P315-L

by Danaher
$2,378.14 - $2,615.95
$2,615.95
$2,378.14 - $2,615.95
$2,615.95

In Stock, Ships Fast

The Danaher P315-L is a 2-phase bipolar MOSFET chopper servo drive from the API Servo Drives series. It features 95-132 VAC, 50/60 Hz input, 0.2–6.2 A per phase output, CW/CCW direction input, optically isolated TTL-compatible logic input, microstep resolution up to 50,800 steps/rev and a 75 °C max heatsink temperature.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Direction Input

Selectable CW/CCW direction input

Drive Type

2-phase bipolar constant-current MOSFET chopper drive

Fault Output

Sinking fault output, 5-24 VDC, max 60 mA

Logic Input

Optically isolated TTL-compatible logic input

Low Power Mode

Low-power mode reduces current to 50%

Max Heatsink Temperature

162°F (75°C)

Microstep Resolutions

16 settings from 200 to 50,800 steps

Output Rating

0.2-6.2 A per phase

Power Enable

Enable/No-power input: reduces motor current to zero

Power Input

95-132 VAC, 50/60 Hz power input

Step Input

Step input: 0.5 μs min pulse, up to 1 MHz

Storage Temperature

-40°F to +185°F

Weight

5.0 lbs
