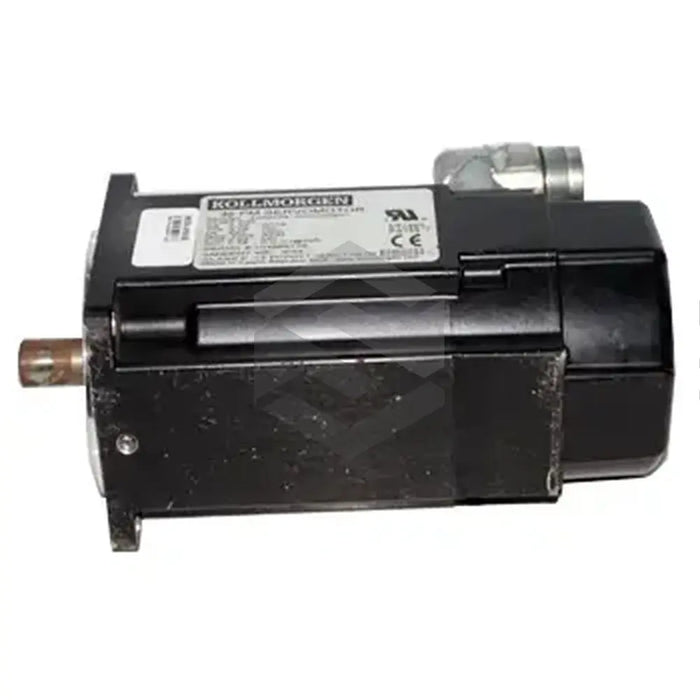

P image of AKM42G-ACCNR-00

AKM42G-ACCNR-00

by Kollmorgen
$4,472.35 - $4,472.35
$4,472.35
$4,472.35 - $4,472.35
$4,472.35

Available, Shipping Varies

The AKM42G-ACCNR-00, created by Kollmorgen, is a servo motor from their AKM series, featuring a standstill torque range between 1.95 and 6Nm and an 84mm flange size. This motor is designed for industrial machine tool drives, robotics, and other high-dynamic applications. It optimally performs when driven by SERVOSTAR digital amplifiers for speed and torque control. This combination is ideal for highly dynamic positioning tasks. The AKM42G-ACCNR-00 uses permanent magnets in the rotor, made from rare earth neodymium-iron-boron, allowing for dynamic drive. Its ball-bearing boasts a life of 20,000 operational hours. Its operating conditions encompass up to 1000 meters elevation, 95% humidity, climate category 3k3, and temperatures between 5 to 40 degrees. It has a G winding type, 0.5m shielded cable, IEC flange shape, a shaft with keyway, and IP65 connectors. A built-in resolver provides feedback. Electrical data include a maximum mains voltage of 480 VAC, a standstill current of 4.80A, and a standstill torque of 3.53Nm. Its standard weight is 3.39 kg. It is essential to ensure the motor's terminal boxes are safeguarded against accidental contact during commissioning. Only trained individuals in electrical engineering or drive technology should carry out this task.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Kollmorgen

Product Name

AKM42G-ACCNR-00

Series

AKM

Standstill Torque

1.95-6Nm

Flange Size

84mm

Application

Industrial Machine Tools, Robots

Drive

SERVOSTAR Digital Amplifiers

Materials

Permanent Magnets, Rare Earth Neodymium-Iron-Boron

Ball-bearing Life

20,000 Operating Hours

Installation Altitude

1000 meters above sea level

Operating Temperature

5-40 degrees

Winding Type

G

Flange Type

IEC

Cable Type

0.5m Shielded Cable with Angular and IP 65 Connectors

Shaft Type

With Keyway

Feedback

Integrated Resolver

Mains Voltage

480 VAC

Standstill Current

4.80A

Standstill Torque

3.53Nm

Standard Weight

3.39kg

Static Friction Torque

0.026Nm

Rotor Momentum of Inertia

1.5J

Safety Requirement

Safe Terminal Boxes Against Accidental Contact
