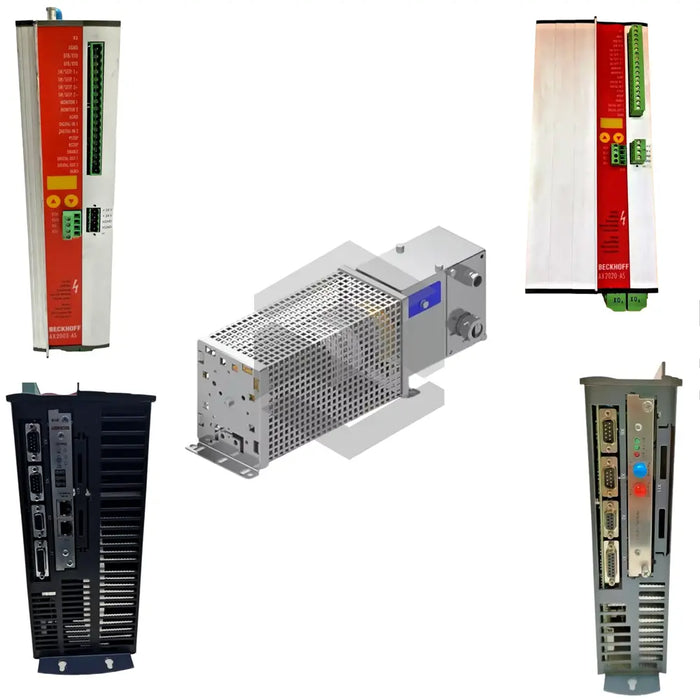

series image of AX5101-0000-0200

AX5101-0000-0200

by Beckhoff
$6,433.93 - $6,433.93
$6,433.93
$6,433.93 - $6,433.93
$6,433.93
In Stock, Ships 3 - 5 Days
The AX5101-0000-0200, produced by Beckhoff, belongs to the AX51xx range of single-channel Servo Drives and is built to provide optimal performance efficiently. Designed for up to 40 A current ratings, this 1-channel Servo Drive from the AX5000 series offers convenient and quick connectivity, working compatibly with a variety of motors and is ideal for use with EtherCAT. Its rated supply voltage is 3 x 100…480 V DC ±10 %/1 x 100…240 V DC ±10 %, with a 1.5 A output current and 0.35 A minimum channel current at full resolution. Having a 4.5 A peak output current and a 875 V DC-Link voltage, this drive features a DC-Link capacitance of 235 µF and minimal power loss of 35 W. It utilizes an EtherCAT system bus, is IP 20 protected and has CE, EAC, and cULus certifications. It utilizes a standard SERCOS™ profile in compliance with IEC 61800-7-204 (SoE) and operates under ambient temperatures of 0…+50oC. With a multiple feedback interface and integrated Cat. C3 main filter, the drive measures 274 mm x 92 mm x 232 mm.
30 Day Warranty
Technical Specifications
  • Manufacturer: Beckhoff
  • Product Type: AX51xx 1-channel Servo Drives
  • Part of series: AX5000
  • Channels: Single/Multiple
  • Functionality: Optimal and Cost-effective
  • Compatibility: Wide Range Motors
  • System Bus: EtherCAT
  • Supply Voltage: 3 x 100…480 V DC ±10 %/1 x 100…240 V DC ±10 %
  • Output Current: 1.5 A
  • Minimum Rated Channel Output Current: 0.35 A
  • Peak Output Current: 4.5 A
  • DC-Link Voltage: 875 V
  • DC-Link Capacitance: 235 µF
  • Power Loss: 35 W
  • Protection Class: IP20
  • Approvals/Markings: CE, EAC, cULus
  • SERCOS™ Profile: IEC 61800-7-204 (SoE)
  • Ambient Temperature: 0…+50oC
  • Feedback Interface: Multiple
  • Integrated Main Filter: Cat. C3 (EN 61800-3 specification)
  • Dimensions: 274 mm x 92 mm x 232 mm (Height x Width x Depth)
