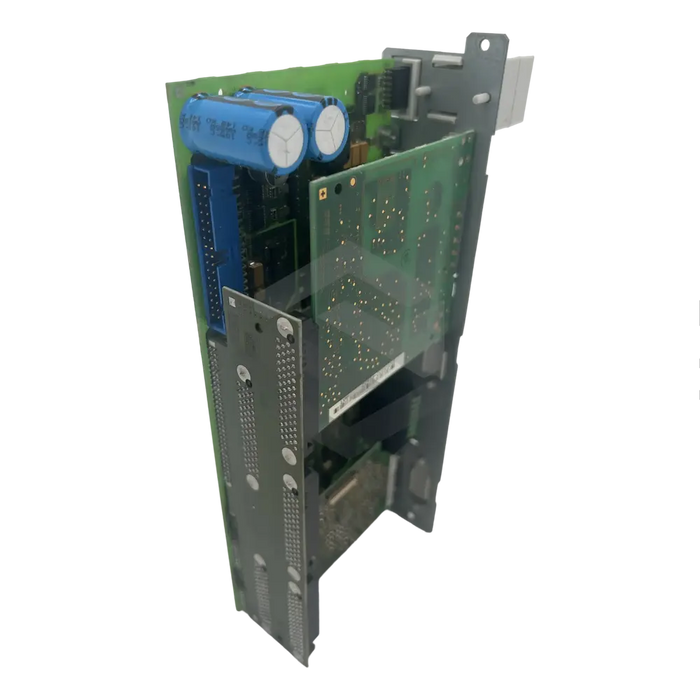

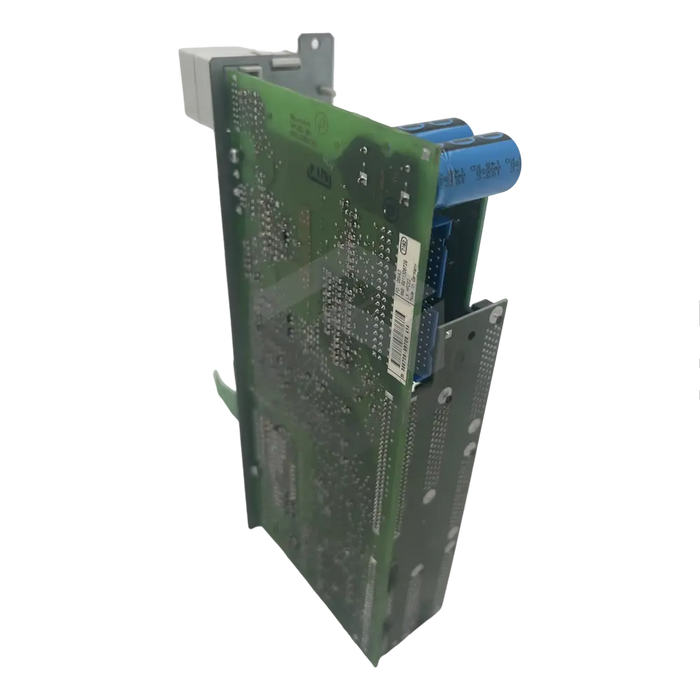

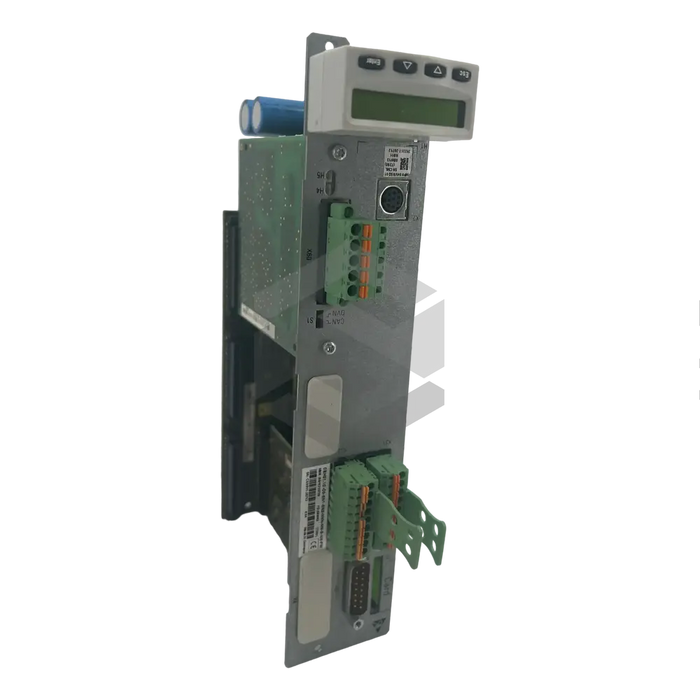

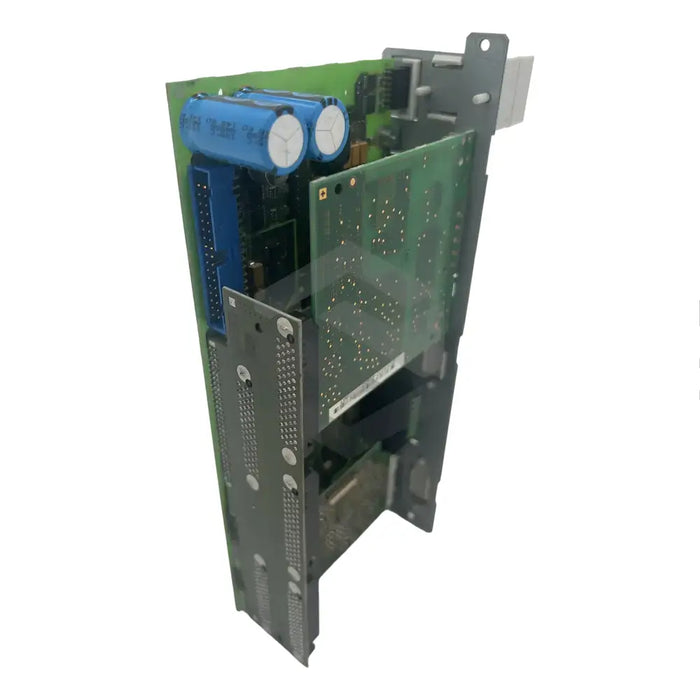

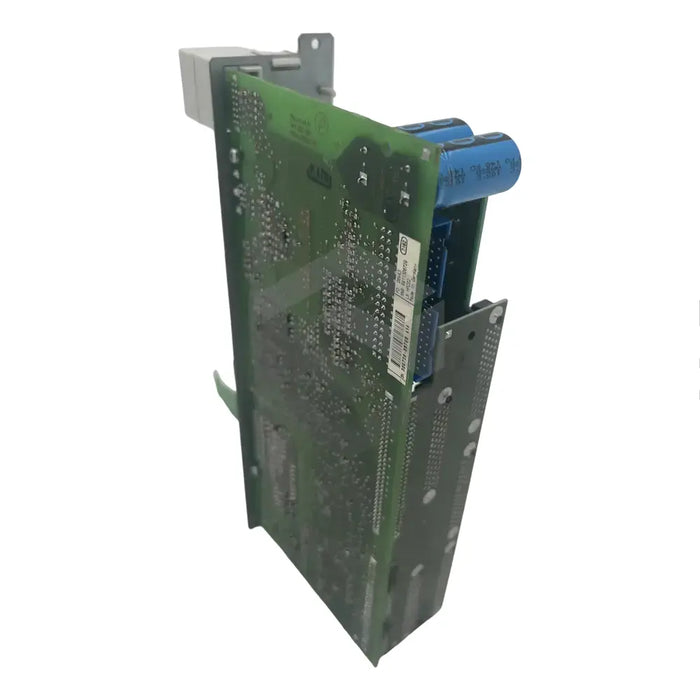

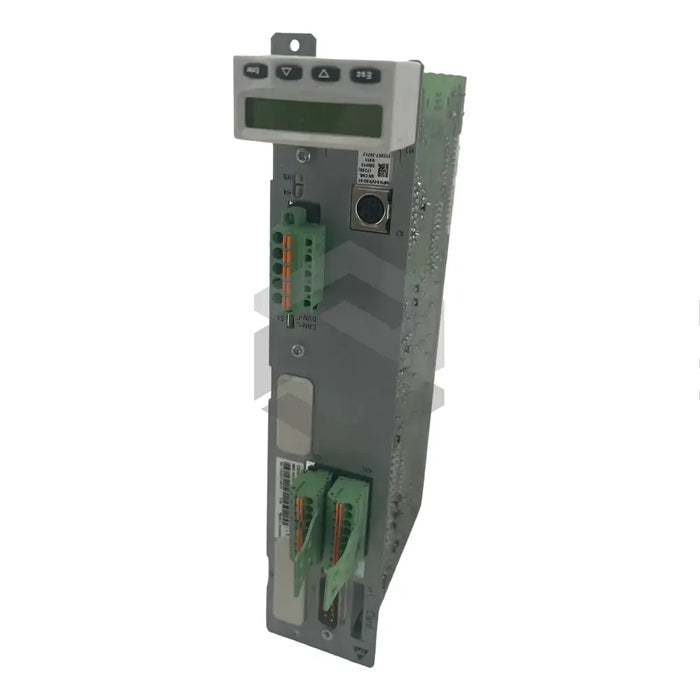

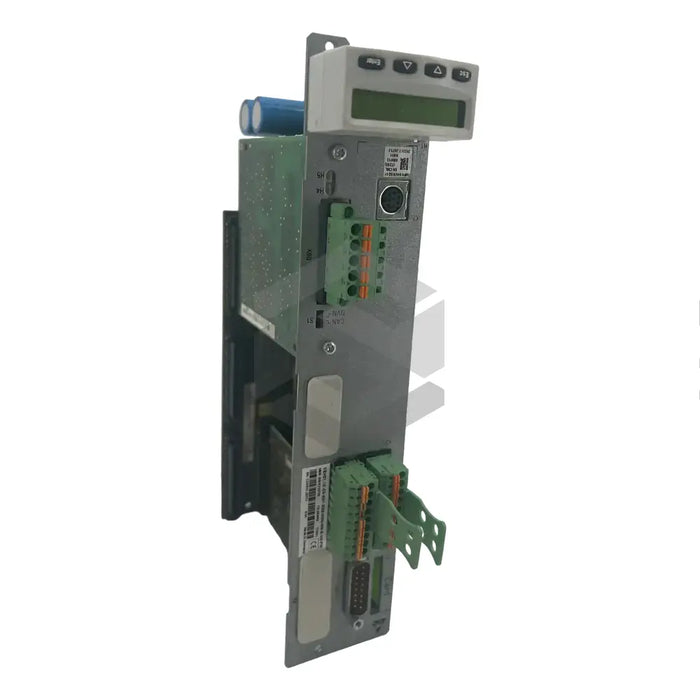

C image of CSH01.1C-CO-EN1-EN2-NNN-NN-S-NN-FW | Main (Front Left)

CSH01.1C-CO-EN1-EN2-NNN-NN-S-NN-FW

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The Bosch Rexroth Indramat CSH01.1C-CO-EN1-EN2-NNN-NN-S-NN-FW is a versatile drive controller used in diverse industrial automation fields. This device is designed for specific commissioning by installing various input/output modules in line with the operational needs and conditions outlined in the CSH documentation. The unit integrates a CANopen or DeviceNet interface for improved communication with the linked motor, controller, and other apparatus. The drive controller operates on a DC-link voltage of 24 VDC, supplied by the appropriate supply unit, consuming a rated current of 4 A. Heat loss is managed through natural convection. Optimal working temperatures range from 0 to +40 degrees Celsius. The CSH01.1C-CO-EN1-EN2-NNN-NN-S-NN-FW includes HSF/RSF and EnDat 2.1 encoders for accurate motor output shaft positioning. Operational parameters are stored in the built-in RAM memory. Importantly, the firmware needed for this unit must be ordered separately. Note that this unit is not water-resistant.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Model

CSH01.1C-CO-EN1-EN2-NNN-NN-S-NN-FW

Product Type

Drive Controller

Input-Output Modules

Yes, to be installed according to requirement

Interface

CANopen or DeviceNet

DC-link Voltage

24 VDC

Rated Current Consumption

4 A

Maximum Heat Loss

7.5 W

Heat Dissipation Method

Natural Convection

Operating Temperature Range

0 to +40 degree Celsius

Water Protection

Not protected

Encoder Type

HSF/RSF and EnDat 2.1 encoder

Display

H1 display

Firmware

Not supplied with unit, to be ordered separately

Operational Parameters Storage

Inbuilt RAM Memory

Additional Features

Multiple digital and analog inputs/outputs.
