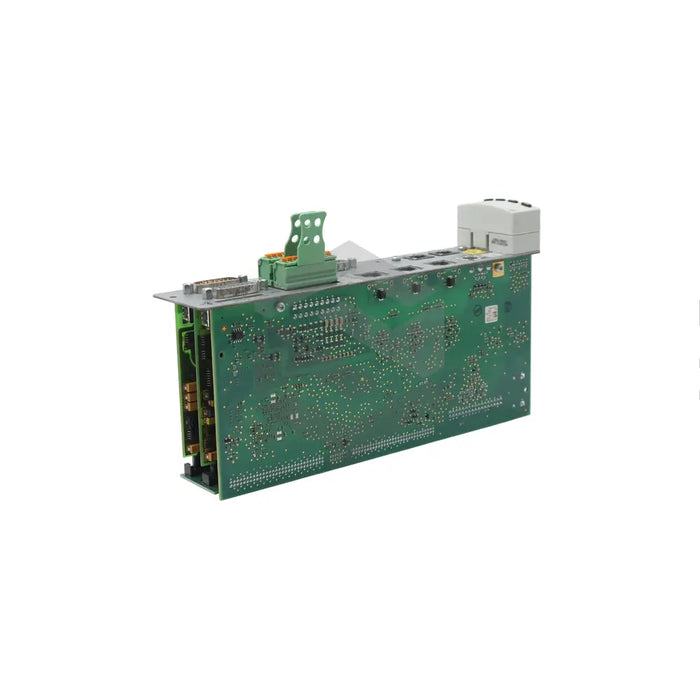

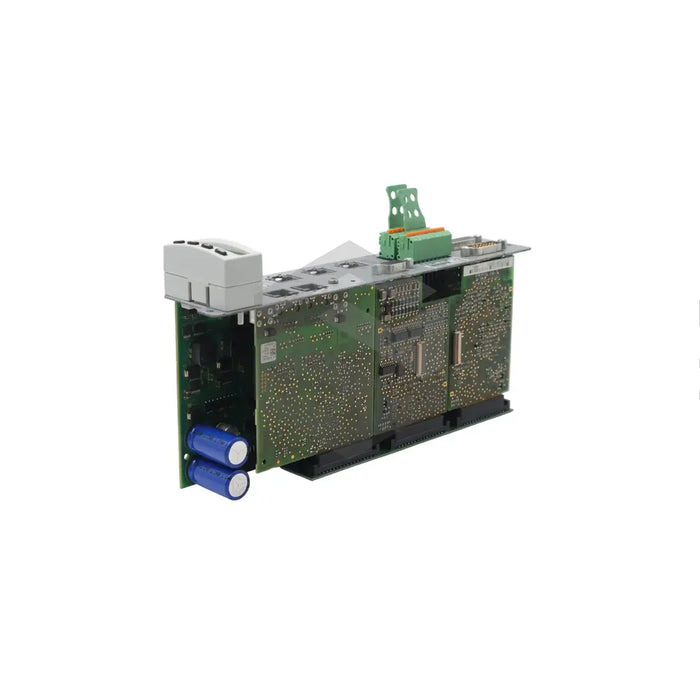

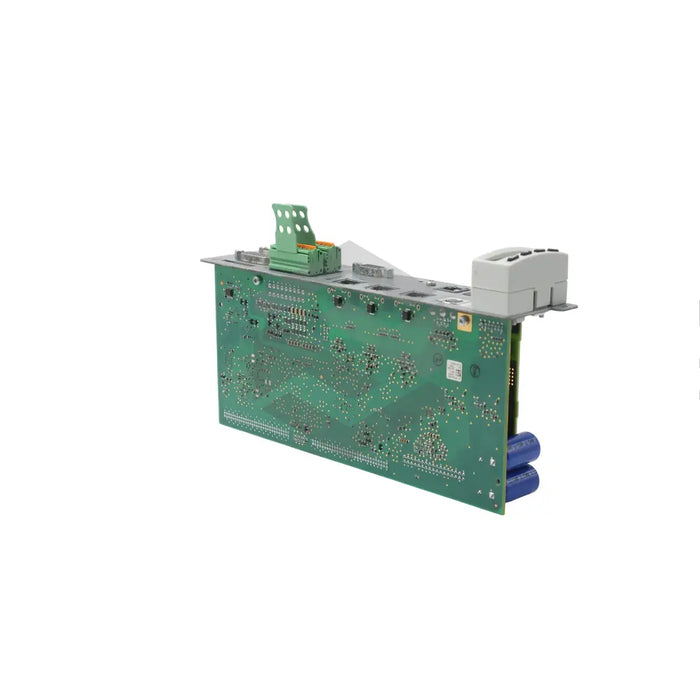

series image of CSH01.3C-ET-EN2-EN2-CCD-S2-S-NN-FW

CSH01.3C-ET-EN2-EN2-CCD-S2-S-NN-FW

by Bosch Rexroth Indramat
Request a quote
The CSH01.3C-ET-EN2-EN2-CCD-S2-S-NN-FW is a Bosch Rexroth control section, specifically designed for single-axis applications. This unit, typically coming pre-installed within the drive controller, can be separately delivered and fitted by Bosch-trained personnel, though the unit shouldn't be mounted or dismounted over 20 times. It showcases unique features such as multi-Ethernet master communication, two EnDat 2.1 interface encoder modules, a cross communication module alongside a safety module that supports a wide range of safety functions such as Emergency stop, safe maximum speed, safely-monitored deceleration, and more. The control unit’s measurements are 241 x 49.5 x 103 mm and it's optimized for convection cooling. Configuration of the controller is done via a standard control panel with a single-line display, and should only be plugged in or disconnected when unpowered.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Control Section
  • Model: CSH01.3C-ET-EN2-EN2-CCD-S2-S-NN-FW
  • Communication: MultiEthernet master
  • Encoder Modules: Two with EnDat 2.1 interfaces
  • Other Modules: Cross communication module, Safety module
  • Safety Functions: Supports various safety related functions
  • Cooling: Convection Cooling
  • Usage: Optimized for single-axis control applications
  • Mounting Orientation: Vertical
  • Dimensions: 241 x 49.5 x 103 millimeters
  • Control Panel: Standard with single-line display, Not support hot plug
