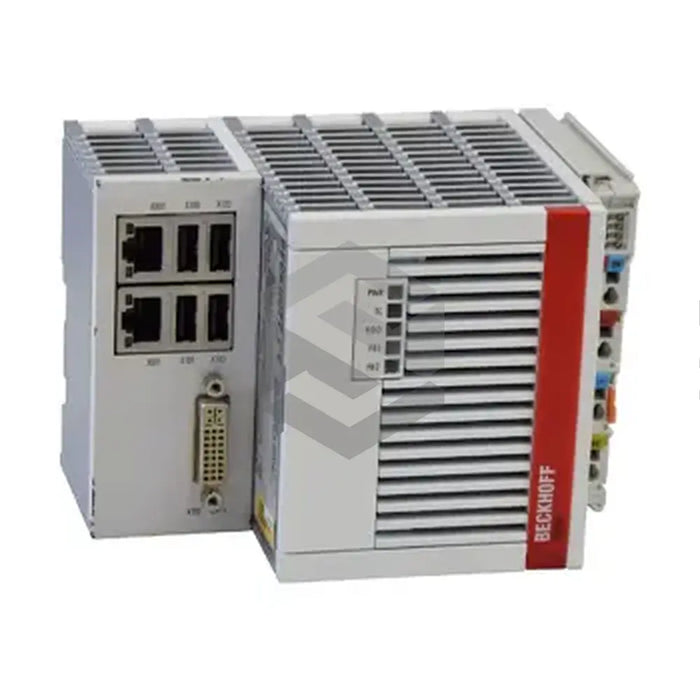

P image of CX5130-0120

CX5130-0120

by Beckhoff
$4,136.27 - $7,231.50
$4,136.27
$4,136.27 - $7,231.50
$4,136.27

In Stock, Ships Fast

The Beckhoff CX5130-0120 Embedded PC is a control system designed to work in temperatures ranging from -25°C to +60°C. Hailing from the CX5130 series, it offers multiple connection opportunities through an optional interface. Although it can handle solid materials, it must be housed in an IP54 protective casing to avoid damage from impacts, vibrations, or liquids. Operating on the Windows Embedded Standard 7 P 32-bit system, it doesn't support TwinCAT control software but has CE, UL, ATEX, and IECEx approvals. With dimensions of 142mm x 100mm x 91mm, this unit boasts a DVI-I interface and dual Gbit Ethernet interfaces. Connection to peripherals is enabled via USB ports, while the power supply auto-detects the bus system's type. Driven by a 1.75GHz dual-core Intel Atom processor, the device needs to be transported in its original packaging to protect from mechanical stress.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Beckhoff

Product Type

Embedded PC

Product Code

CX5130-0120

Series

CX5130

Operating Temperature

-25°C to +60°C

Interface Options

Gateway functions and optional interface support

Maximum Resolution

2560 x 1440

Operating Environment

Non-dusty and non-wet environments

Installation Requirements

Housing capable of IP54 protection class

Operating System

Windows Embedded Standard 7 P 32-bit

Software Support

No TwinCAT control support

Approvals

CE, UL, ATEX, IECEx

Protection

Sensitive to strong impacts, vibrations, and liquids

Transportation Requirements

Original packaging

Dimensions

(W x H x D): 142mm x 100mm x 91mm

Connections

DVI-I interface with two Gbit Ethernet interfaces

Bus Terminal Placement

Right side of power supply

Processor

Dual-core Intel Atom

Clock Frequency

1.75 GHz

USB Port Functionality

Connection of touchscreens, mice, keyboards, and storage devices

DVI-I Connectivity

Analog or digital motor connection
