DDS02.1-A150-DL01-01-FW

by Bosch Rexroth Indramat
$8,637.02 - $8,637.02
$8,637.02
$8,637.02 - $8,637.02
$8,637.02

In Stock, Ships 1 - 3 Days

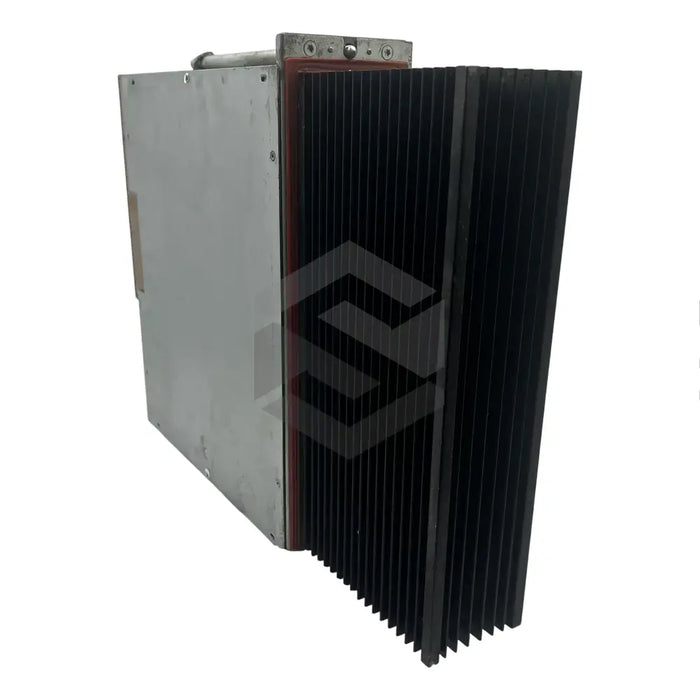

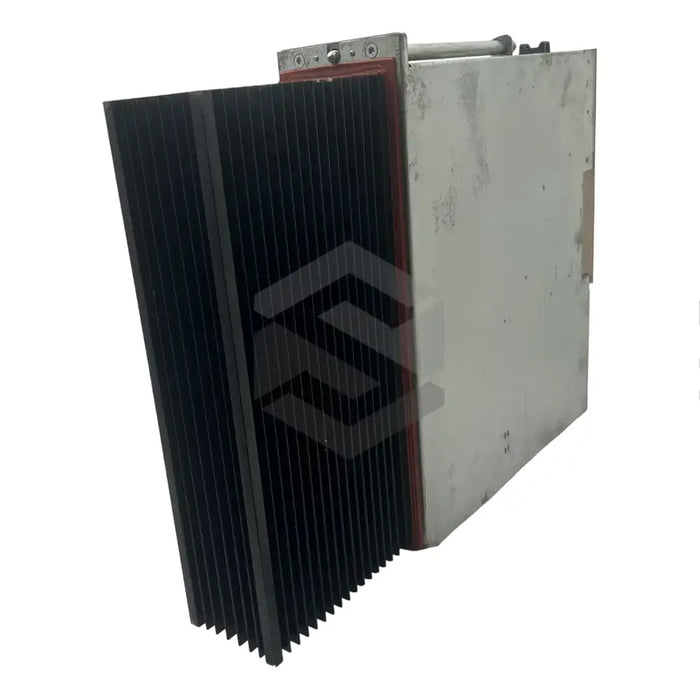

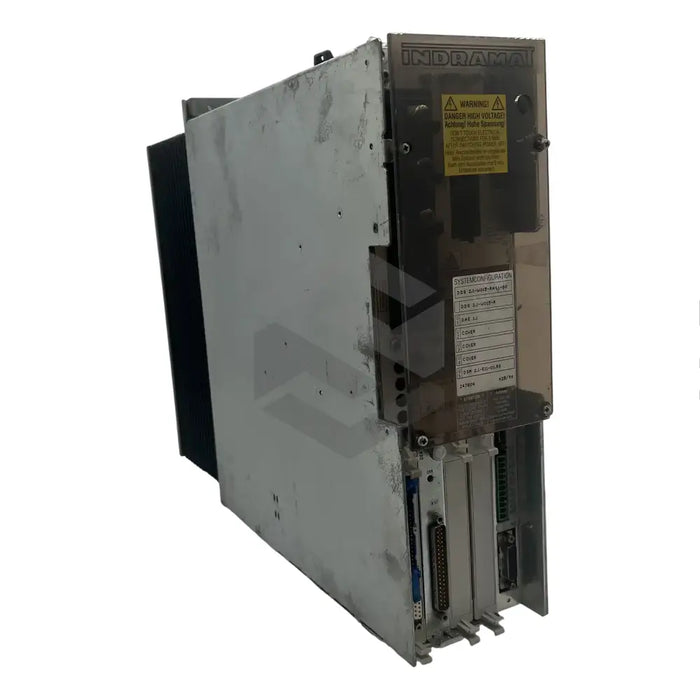

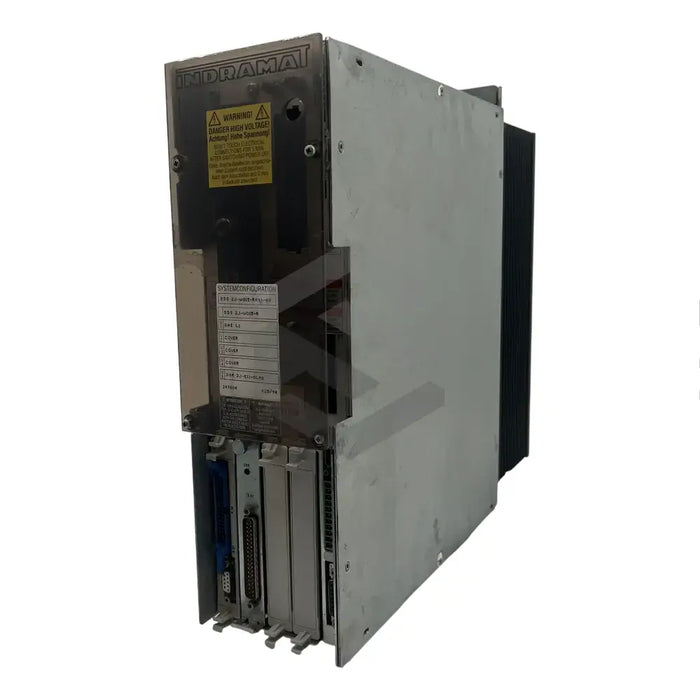

The Bosch Rexroth Indramat DDS02.1-A150-DL01-01-FW is a modular drive controller, with an output of 150 Amps. The controller operates optimally at an ambient temperature of 0 to 45 degrees Celsius and can withstand up to 55 degrees Celsius with derated efficiency. It can be stored and transported in temperatures of -30 to 85 degrees Celsius. The device performs well up to an elevation of 1000 meters, with 65% efficiency at 5000 meters. The IP10-rated enclosure is designed for panel mounting and is not watertight. This device weighs about 11 kilograms and operates at a DC bus voltage of 300 Volts with 15% variance. It uses energy efficiently, preventing heat build-up in the control cabinet. The controller supports digital servo feedback and comes with a single-axis position control module. Installation and handling should be done by qualified technical personnel, adhering to safety instructions to prevent harm or damage.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Modular Drive Controller

Output Current Rating

150 Amps

Operating Temperature (Rated Data)

0 to 45 degrees Celsius

Operating Temperature (Derated Data)

55 degrees Celsius

Storage and Transportation Temperature

-30 to 85 degrees Celsius

Maximum Permitted Elevation (Rated Data)

1000 meters above sea level

Maximum Permitted Elevation (Derated Data)

5000 meters altitude

Maximum Permitted Operating Relative Humidity

95%

Enclosure

IP10 rated, Panel Mounting

Weight

11 kilograms

DC Bus Voltage

300 Volts ±15%

Communication Module

Single Axis Position Control

Feedback Type

Digital Servo

Firmware

Not included, needs to be added as a separate subposition

Installation

By Trained and Qualified Technical Personnel Only

Safety Guidelines

Implementation Required for Injury and Equipment Damage Prevention
