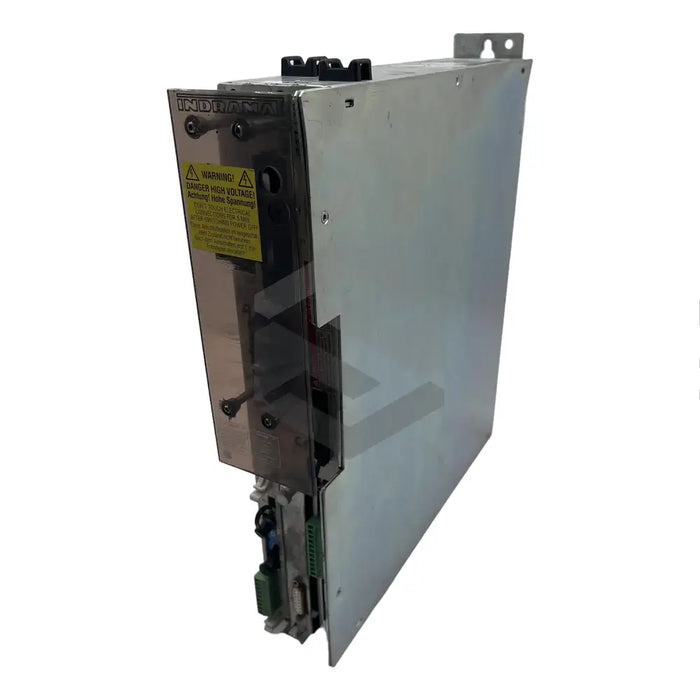

C image of DDS03.1-W030-DS03-02-FW | Main (Front Left)

DDS03.1-W030-DS03-02-FW

by Bosch Rexroth Indramat
$6,395.80 - $6,395.80
$6,395.80
$6,395.80 - $6,395.80
$6,395.80

In Stock, Ships 1 - 3 Days

A product of Bosch Rexroth Indramat, the DDS03.1-W030-DS03-02-FW drive controller exhibits a modular design, well-suited for applications in machine tools and robotics. Ensuring proper assembly, installation, transport, and storage is paramount for optimal safety and operational efficiency. It should be installed in a control cabinet and adequately grounded prior to use. The controller is compatible with varying modules for adaptability, with interfaces having a 5V to 30V signal voltage range. It is crucial to pair the device with a motor sharing the same type code for accurate motor feedback data. The firmware and software module for functionalities are distinct items. It hosts a SERCOS interface plug-in module in the U1 slot for operation with compatible controls via a fiber optic cable. With a dedicated U5 slot for the software module, the unit's power supply connection supports a 24VDC or +/-15VDC supply. The controller operates efficiently between 0°C and 45°C, and performance may decrease if operating conditions exceed these parameters. This product offers global shipping and one year of support.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Name

DDS03.1-W030-DS03-02-FW Drive Controller

Design

Modular

Applications

Machine Tools, Robotics

Assembly

Required

Installation

Required, Must be placed in control cabinet

Protection

Must be guarded against indirect contact

Grounding Connection

Required before use

Material

Has hot housing

Warning

May move unpredictably due to malfunctioning

Interfaces

Signal voltage ranges between 5V and 30V

Series Code

3

Feedback

Device and motor should have same type code

Customization

Different software modules for different functions

Firmware

Procured separately

U1 Slot

Occupied by SERCOS interface plug-in module

Compatibility

Operable with SERCOS interface compatible controls

Connection Method

Fiber optic cable

Mounting

Requires removal and re-fixing of faceplate

U5 Slot

Reserved for software module

Power Supply Connection

Connectible with 24VDC or +/-15VDC supply

Rating Plate Feature

Term COVER indicates empty slot

Operating Temperature Range

0°C to 45°C

Performance

May reduce if above mentioned conditions are exceeded

Shipping

Global availability.
