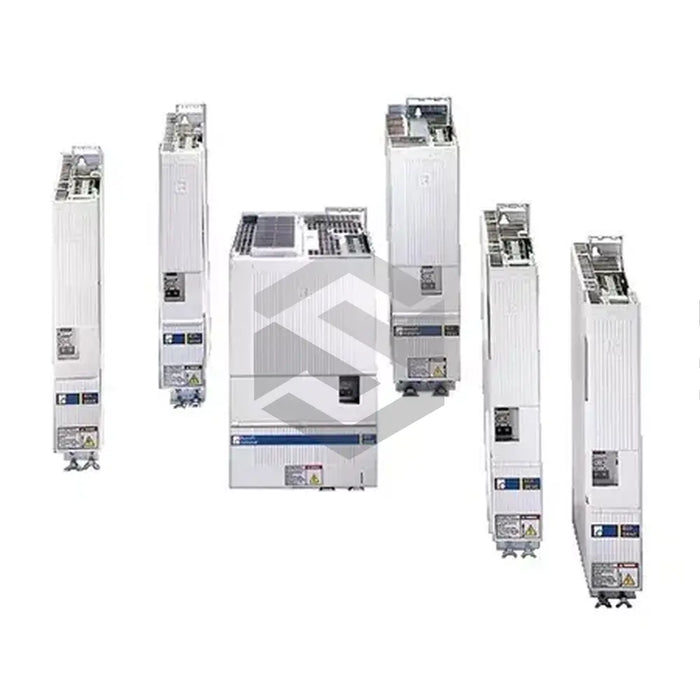

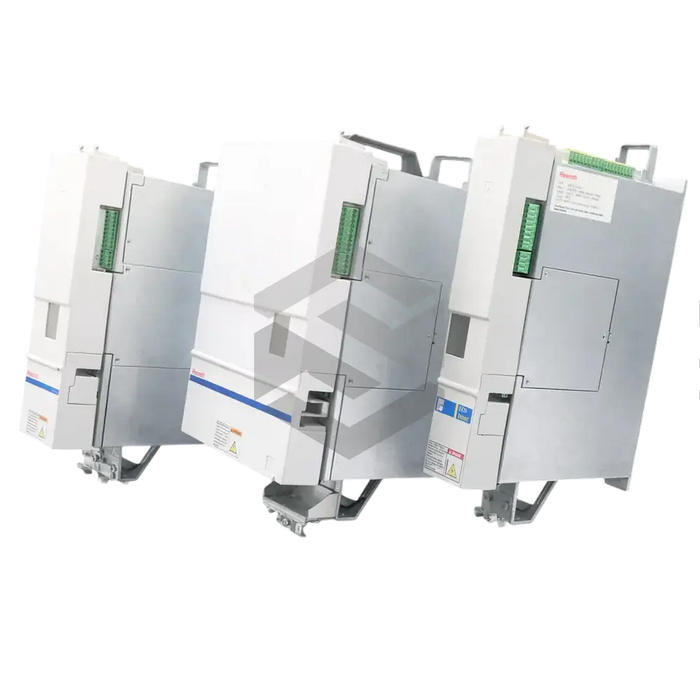

series image of DKC02.3-200-7-FW/S10

DKC02.3-200-7-FW/S10

by Bosch Rexroth Indramat
Request a quote
The DKC02.3-200-7-FW/S10 is a drive controller by Bosch Rexroth Indramat, designed to control various motors with a universal application in mind. Notable for its budget-friendly and dynamic operation, this model possesses unique features like a digital drive concept, an automatic parameter match, and a software travel limit switch - ensuring convenient startup processes. It can store up to 32 positioning blocks, selected via parallel inputs, and can regulate the number of steps per motor rotation from 16 to 65536. Operating at a rated current of 200 A and DC bus voltage of 700 V, it's fit for ambient temperatures up to +40 degrees Celsius, albeit with a loss of nominal data between +40 to +55 degrees Celsius. This model necessitates a minimum gap of 50mm for installation, and its pollution degree 2 rating means it's engineered for minor pollution environments. Please refer to the type code DKC02.3-200-7-FW/S10 for inquiry; firmware not included and should be ordered separately.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Drive Controllers with SERCOS interface
  • Model: DKC02.3-200-7-FW/S10
  • Feature: Budget friendly and favorable dynamic operation
  • Additional Features: Digital drive concept, software travel limit switch, easy startup operation, automatic parameter matching
  • Storage Capacity: allows up to 32 positioning blocks to be stored
  • Status Output: Used to check drive status
  • Steps per Rotor Rotation: value in between 16 to 65536
  • Type: mentioned on the device and a rating plate attached
  • Firmware: Does not include, needs to be ordered separately
  • Rated Current: 200 A
  • DC bus voltage: 700 V
  • Maximum Ambient Temperature: up to +40 degree Celsius
  • Operating Temperature: In the range of +40 to +55 degree Celsius, may lose nominal data
  • Pollution Degree: 2
  • Installation: Minimum gap of 50mm on top and bottom of device.
