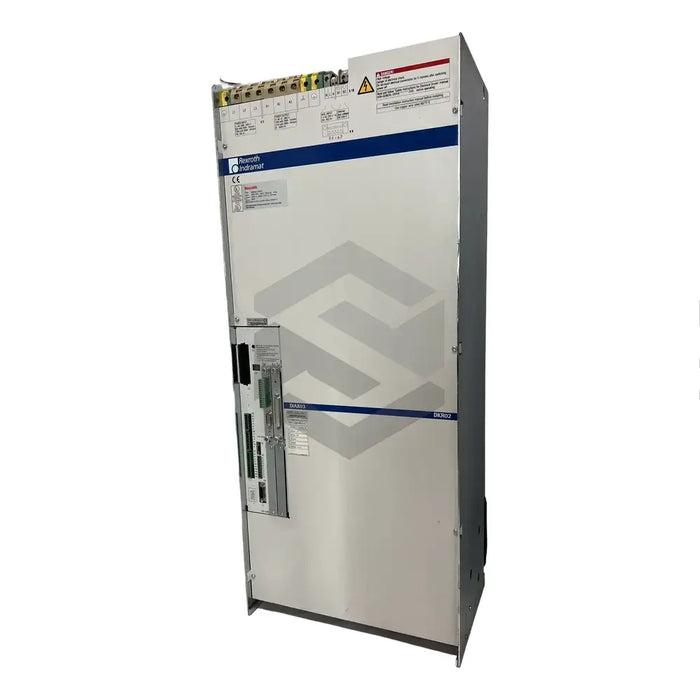

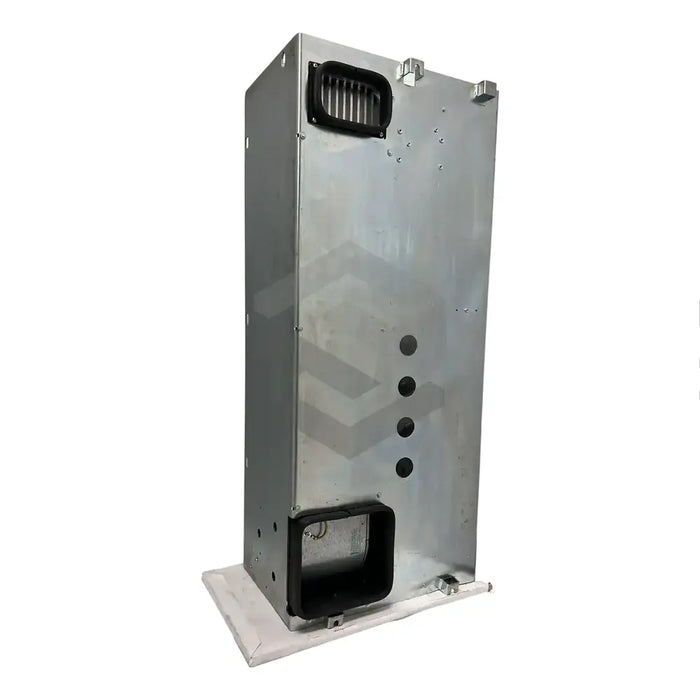

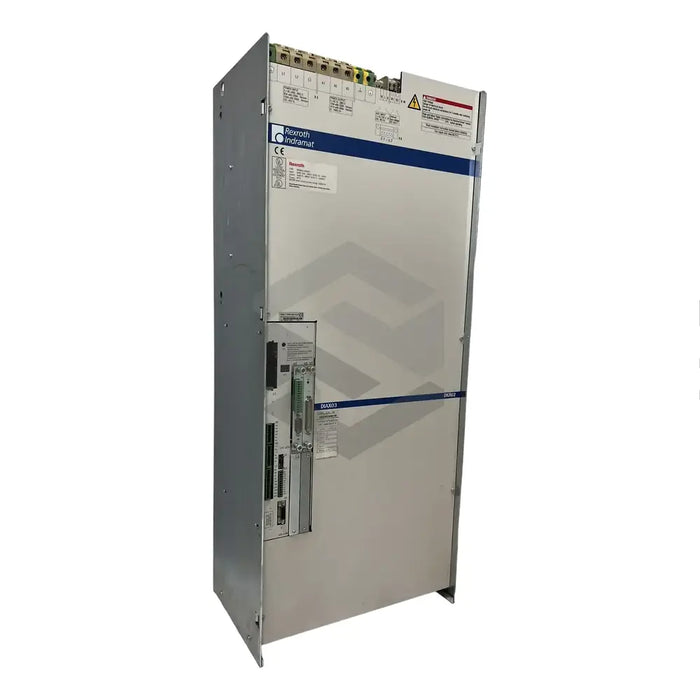

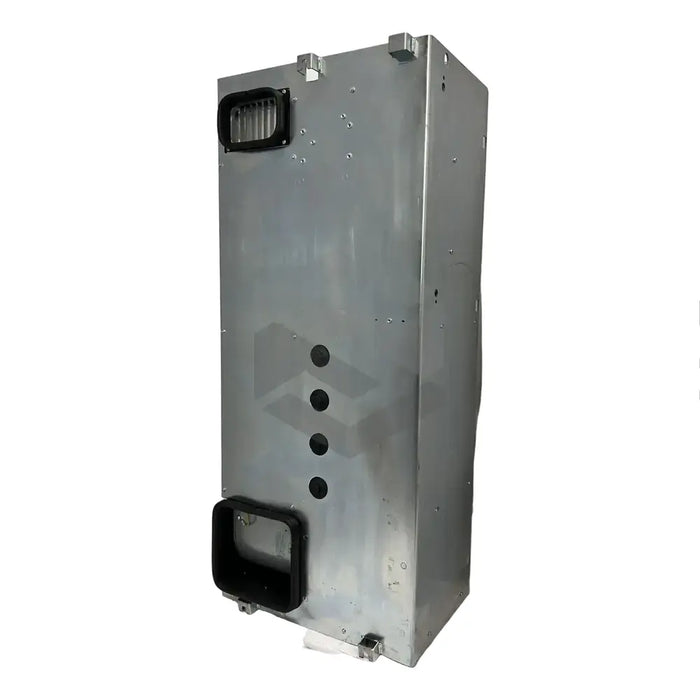

DKR02.1-W300N-BA03-01-FW

Original price $15,232.50 - Original price $15,232.50
Original price
$15,232.50
$15,232.50 - $15,232.50
Current price $15,232.50
In Stock, Ships 3 - 5 Days
Request a quote
The DKR02.1-W300N-BA03-01-FW, a product of Bosch Rexroth Indramat, is a drive controller from the DKR02 series with a rated current output of 300 Amps. Primarily used for controlling motors from the LSF, LAF, 1MB and 2AD product lines, it's particularly beneficial for printing machines or NC machine tools. This device does not come with a bleeder but supports digital servo and resolver feedback and has an analog command communication module. It can be directly connected to AC mains operating at 400 to 480 Volts AC. Despite not coming with a transformer, it does include a mains contactor, emergency shutdown device, and an inbuilt blower for cooling under load conditions. With continuous power output ratings of 55 kilowatts at 4 kilohertz and 43 kilowatts at 8 kilohertz, it operates best at temperatures between 5 to 45 degrees Celsius and installation elevations under 1000 meters. Firmware, sold separately, are stored on a transferrable software module.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: DKR02
  • Model: DKR02.1-W300N-BA03-01-FW
  • Rated Current Output: 300 Amps
  • Function Numeric Code: 03
  • Version Function Numeric Code: 01
  • Applicable Motors: LSF, LAF, 1MB, 2AD
  • Feedback: Digital Servo and Resolver
  • Communication: Analog
  • Voltage: 400 to 480 Volts AC
  • Bleeder: Not included
  • Built-in features: Mains Contactor, Emergency Shutdown Device, Blower
  • Continuous Current Ratings: 141 Amps at 4 kHz, 110 Amps at 8 kHz
  • Continuous Power Output Ratings: 55 kW at 4 kHz, 43 kW at 8 kHz
  • Shipping Weight: 104 kg
  • Ambient Temperature: 5 to 45 degrees Celsius
  • Elevation: less than 1000 meters
  • Firmware: Ordered Separately
  • Software Storage: Software Module.
