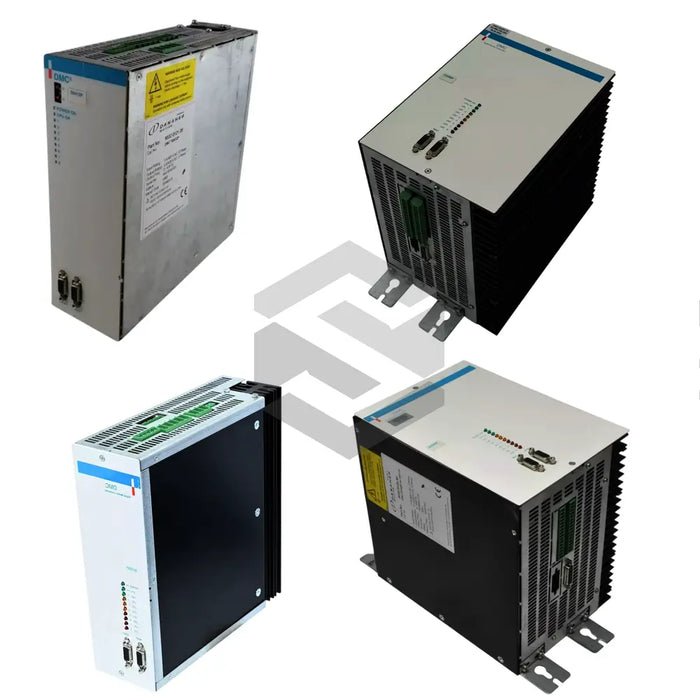

S image of DMC2 31025P

DMC2 31025P

by Danaher
$4,118.49 - $15,411.52
$4,118.49
$4,118.49 - $15,411.52
$4,118.49

The DMC2 31025P from Danaher features an IP20 protection rating and weighs 3.8 kg. Part of the DMC Motion Controllers series, it accepts a 3-phase 400 VAC input and delivers 3.4 kW continuous power at 40°C. It achieves 95% efficiency at continuous current and supports a peak current of 20 A.

With a DC bus voltage of 570 V and a switching frequency of 4 kHz, it maintains speed linearity under 1%. Its compact footprint measures 76 mm wide and 227 mm deep. Open-loop current bandwidth reaches 2 kHz.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Continuous current at 40°C

4 A, 7 A or 15 A

Continuous power at 40°C

3.4 kW (model-dependent)

DC bus voltage

570 V DC (+10%/-20%)

Depth

227 mm

Efficiency at continuous current

95%

Height

234 mm

Input voltage

3-phase 400 V AC (-20%/+10%)

Min. motor inductance (phase-phase)

8 mH (typical)

Open-loop current bandwidth

2 kHz

Peak current

12-40 A (typical 20 A)

Protection rating

IP20

Speed linearity

<1%

Switching frequency

4 kHz

Weight

3.8 kg

Width

76 mm
