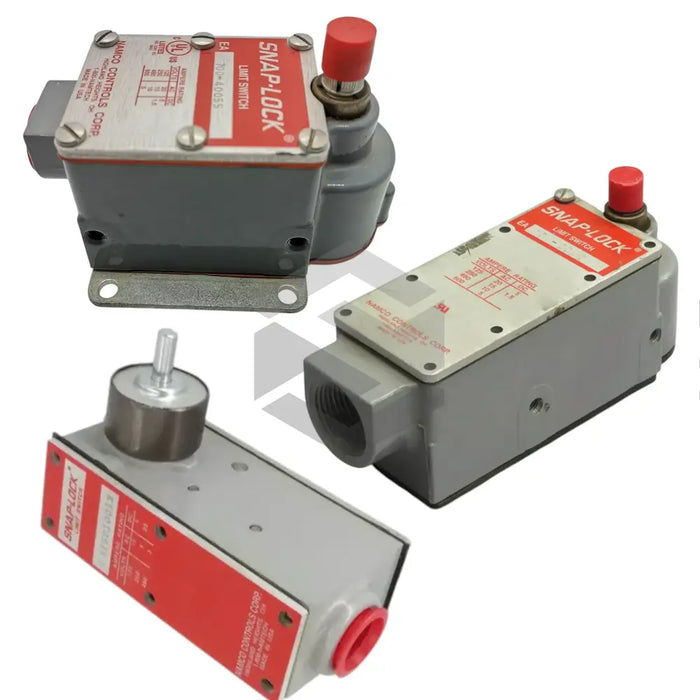

S image of EA170-21300

EA170-21300

by Danaher
$599.91 - $899.22
$899.22
$599.91 - $899.22
$899.22

In Stock, Ships Fast

The EA170-21300 is a Snaplock Limit Switch manufactured by Danaher. Part of the Snaplock Limit Switches series, it has DPDT contacts and 37° total travel. The switch meets NEMA 1, 4, and 13 enclosure requirements and handles up to 20 A at 125 VAC. It operates from 0°C to 90°C and offers lever adjustment in 7°30' increments.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Contact Arrangement

Two NO and two NC contacts (NEMA Z)

Current Rating at 120 Vac

20 A (75-100% PF)

Current Rating at 125 Vdc

5 A

Current Rating at 250 Vac

15 A (75-100% PF)

Current Rating at 250 Vdc

1.5 A (75-100% PF)

Current Rating at 480 Vac

10 A (75-100% PF)

Current Rating at 600 Vac

5 A (75-100% PF)

Enclosure

NEMA 1, 4, 13 (dust, water, oil tight)

Mounting Options

Standard, Wide, Long; front or reverse shaft

Operating Lever Adjustment

Adjustable in 7°30' increments up to 173°

Operating Temperature Range

0°C to 90°C continuous; short-term up to 175°C

Rotation/Trip Options

CW, CCW, Maintained; standard or short travel

Travel

Pre-travel 10° (std) or 6.5° (short); max 37°

Weight

EA170-302: 3.5 lbs; EA170-402: 4.5 lbs

Wiring Space

Wiring for up to nine conductors
