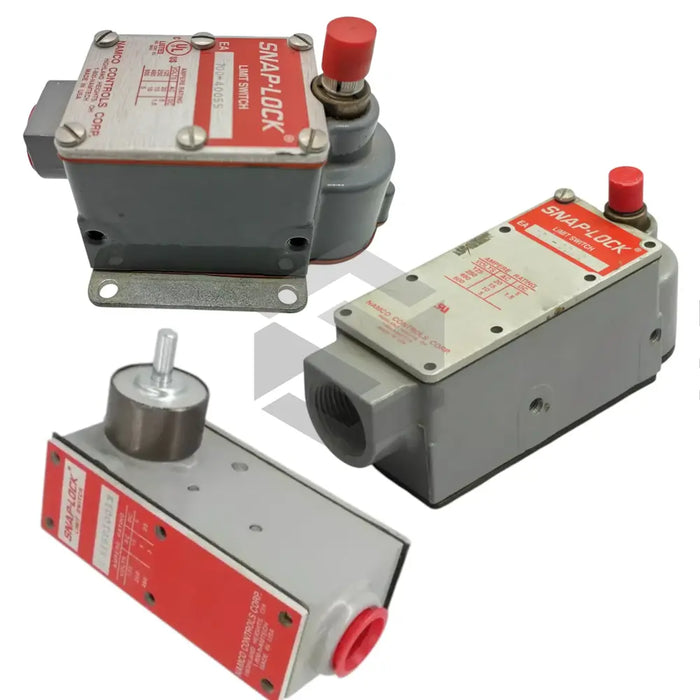

S image of EA170-25100

EA170-25100

by Danaher
$1,565.66 - $1,565.66
$1,565.66
$1,565.66 - $1,565.66
$1,565.66
Condition: Unused Surplus

In Stock, Ships Fast

The Danaher EA170-25100 is a powerful chassis-mounted limit switch from the Snaplock Limit Switches series. Featuring a DPDT circuit with 2 NO, 2 NC (NEMA Form Z) contacts and a side rotary actuator adjustable in 7.5° increments, it is rated NEMA 1, 4, 13, handles up to 20 A @ 120 VAC, and operates from -20°C to 90°C.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Actuator Type

Side rotary (no lever)

Circuit

DPDT

Contact Arrangement

2 NO, 2 NC (NEMA Form Z)

Enclosure Rating

NEMA 1, 4, 13 (dust-, water-, oil-tight)

Lever Adjustment Increment

7.5° per step

Lever Travel Angle

~167° (up to 173°)

Max Current 120 VAC

20 A

Max Current 125 VDC

5 A

Max Current 250 VAC

15 A

Max Current 250 VDC

1.5 A

Max Current 480 VAC

10 A

Max Current 600 VAC

5 A

Mounting Type

Chassis mount

Operating Temperature

-20°C to 90°C; short-term to 175°C

Termination Style

Screw terminal
