EA170-31100

by Danaher
Original price $343.92 - Original price $1,591.37
Original price
$1,591.37
$343.92 - $1,591.37
Current price $1,591.37

In Stock, Ships 1 - 3 Days

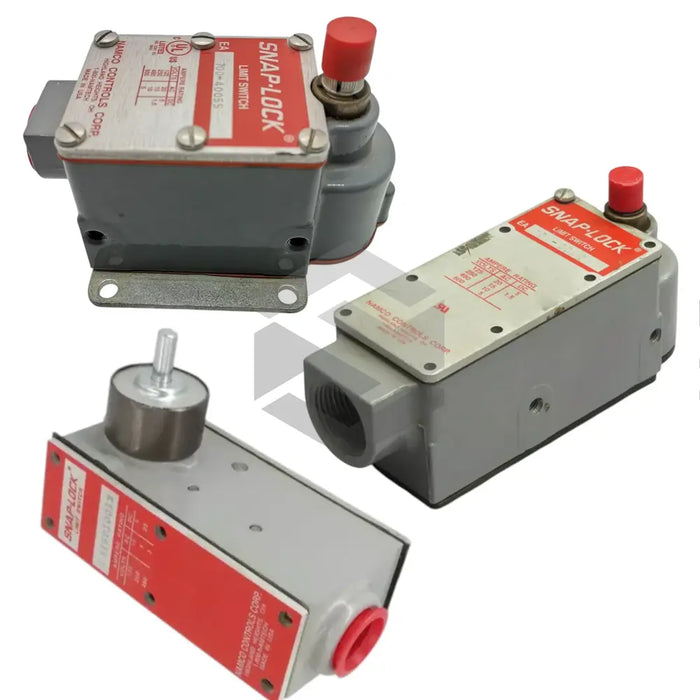

The EA170-31100 from Danaher features two NO and two NC Form Z contacts and a die-cast zinc/aluminum housing. Part of the Snaplock Limit Switches series, it operates from 0°C to 90°C and supports a 75–100% power factor at 3.5 lbs. This switch meets NEMA 1, 4 and 13 ratings and accommodates up to nine conductors.

It handles AC up to 20A at 120VAC and DC up to 5A at 125VDC. The lever adjusts in 7°30′ increments over 173° travel. It is IEEE nuclear qualified.

Contact Us

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

AC Current Rating


120VAC:20A;250VAC:15A;480VAC:10A;600VAC:5A

Contact Arrangement


2 NO, 2 NC, NEMA Form Z

Contact Material


Silver alloy butt contacts

DC Current Rating


125VDC:5A;250VDC:1.5A

Enclosure Rating


Meets NEMA 1,4,13 dust-/water-/oil-tight

Housing Material


Die-cast zinc/aluminum

Lever Adjustment


7°30′ increments up to 173° (360° reverse shaft)

Lever Latching


Positive lever latch mechanism

Mounting/Shaft Options


Std, Wide, Long mount; Front or reverse shaft

Nuclear Qualification


IEEE 323/344/382; QA per 10CFR50 App B, ANSI N45.2

Operating Temperature


0°C to 90°C; short-term to 175°C

Power Factor


75-100%

Rotation/Trip Modes


CW,CCW,Maintained; std/short travel

Travel


Pre-travel 10° (6.5° short travel); max 37°

Weight


3.5 lbs (EA170-302); 4.5 lbs (EA170-402)

Wiring Space


Accommodates up to 9 conductors
