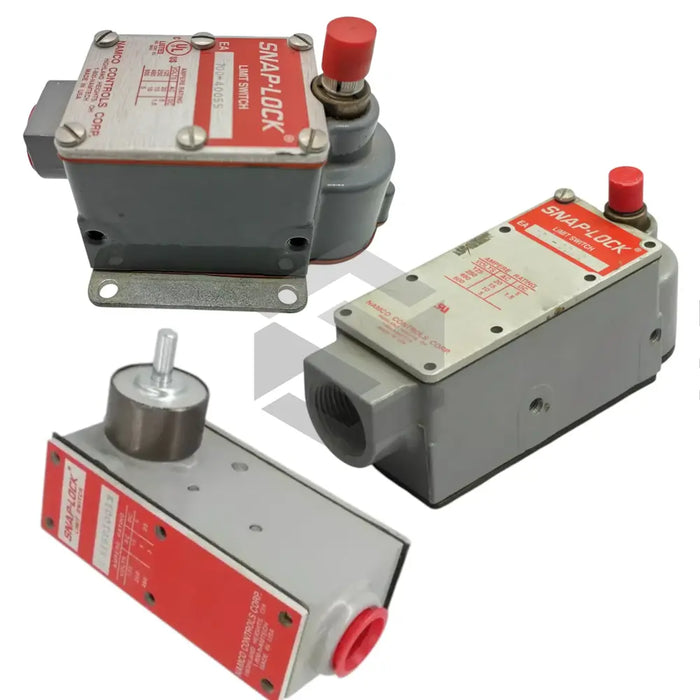

S image of EA700-80001

EA700-80001

by Danaher
$922.46 - $1,014.71
$1,014.71
$922.46 - $1,014.71
$1,014.71

In Stock, Ships 1 - 3 Days

EA700-80001 features a die-cast zinc housing and lever adjustment in 7°30′ increments. Manufactured by Danaher in the Snaplock Limit Switches series, it meets NEMA 1, 4, 13 standards and uses silver alloy butt contacts. It offers a maximum operating torque of 18 lb-in, 90° total travel and built-in over-travel.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Contact configurations

1NO/1NC, 2NO, 2NC, 4NO, 4NC (Form Z)

Contact material

Silver alloy butt contacts (Form Z)

Enclosure type

NEMA 1, 4, 13 (EA700)

Housing material

Die-cast zinc (std); bronze, aluminum, cast iron optional

Lever adjustment increment

7°30' steps, 360° range

Mounting styles

Standard, wide, long

Operating torque

Max 18 lb-in (CW); 13.5-15 lb-in (pre-travel)

Over-travel

Built-in to ensure fast, positive contact action

Recommended travel

45°

Reset differential travel

22° CW, 12° CCW

Snap-lock mechanism

Rocker-type for quick make/break operation

Standards compliance

Meets NEMA 1, 4, 13 dust/water/oil tight

Total travel

90°

Trip travel

31°

Voltage rating

125VAC:20A/5A DC;250VAC:15A/1.5A DC;480VAC:10A;600VAC:5A

Wiring capacity

Supports conductors up to 12 AWG
