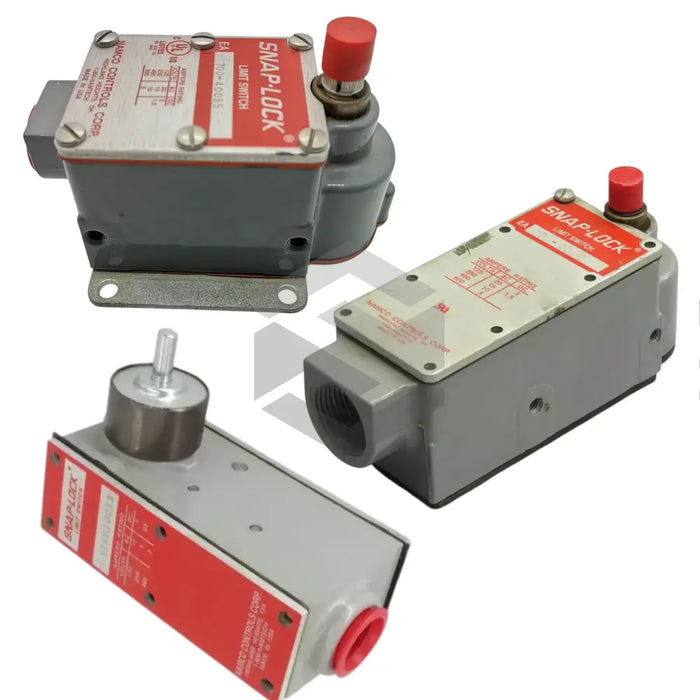

The Danaher EA70020100 is a robust Snaplock Limit Switches device from Danaher featuring a corrosion-resistant die-cast zinc housing and NEMA 1,4,13 enclosure rating. It provides 1NO/1NC butt contacts, a torque rating of 18 lb·in CW, trip travel of 31°, and operates from –20 °C to +90 °C.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Adjustment Increments
7°30'
Contact Configuration
1NO/1NC butt; NEMA form Z
Contact Material
Silver alloy
Enclosure Rating
NEMA 1/4/13 watertight, oil & dust tight
Housing Material
Die-cast zinc
Mounting Dimensions
4 holes, 0.260 in dia
Mounting Options
Standard & Wide
Operating Temperature Range
-20 °C to +90 °C
Recommended Travel
45°
Reset Travel
22° CW, 12° CCW
Torque Rating (2 contacts)
18 lb·in CW, 13.5 lb·in CCW
Torque Rating (4 contacts)
9.5 lb·in CW (4NO), 15 lb·in CCW (4NC)
Total Travel
90°
Trip Travel
31° CW/CCW
