EA800-25150

Name: EA800-25150
Brand: Danaher
Price: 2187.48 USD
Availability: InStock

by Danaher

$2,187.48 - $2,187.48

$2,187.48

$2,187.48 - $2,187.48

$2,187.48

In Stock, Ships 1 - 3 Days

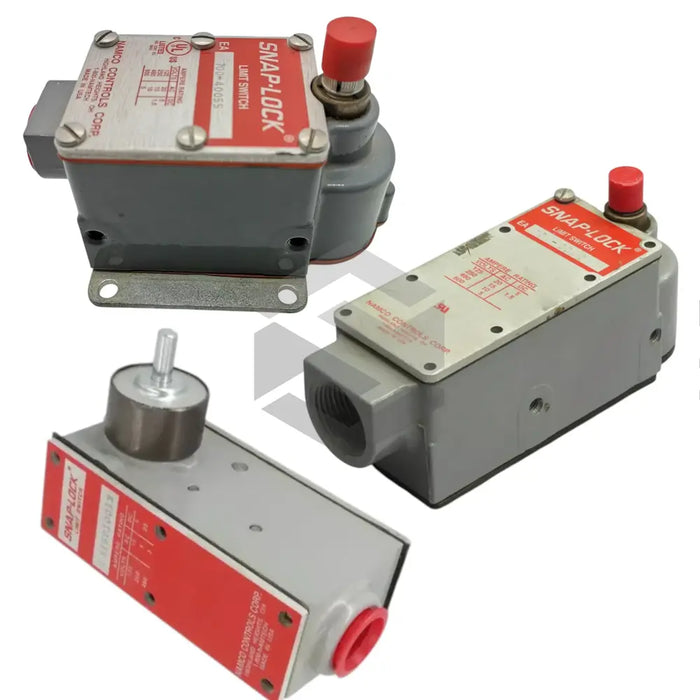

The Danaher EA800-25150 from the Snaplock Limit Switches series is a cam-operated limit switch offering 1 NO/1 NC, 2 NO/2 NC or 3 NO/3 NC contact configurations with silver alloy Form Z butt contacts. Its housing of bronze, aluminum or cast iron provides spark-proof protection and IP66 ingress resistance. The lever adjustment in 7°30' increments with 360° travel accommodates precise actuation, while supporting up to #12 AWG wiring in a generous compartment. Rated up to 20 A at 125 VAC and 5 A at 125 VDC, it endures up to 10 million cycles across -40 °C to +150 °C and meets NEMA 1, 4, 13 standards.

Contact Us

Email: sales@servosupplier.com

Phone Number: 1-888-551-3082

International: 1-919-443-0207

Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Conductor Size

Supports up to #12 AWG wiring

Contact Configuration

1 NO/1 NC; 2 NO/2 NC; 3 NO/3 NC

Contact Material

Silver alloy, Form Z butt contacts

Electrical Ratings (AC)

125 VAC: 20 A; 250 VAC: 15 A; 480 VAC: 10 A; 600 VAC: 5 A

Electrical Ratings (DC)

125 VDC: 5 A; 250 VDC: 1.5 A

Housing Materials

Bronze, Aluminum or Cast Iron

Ingress Protection

IP66

Lever Adjustment

7°30' increments, 360° travel

Mechanical Life

Up to 10 million cycles

Operating Mechanism

Cam (EA800) or Rocker (EA880)

Operating Temperature

-40 °C to +150 °C

Spark‑proof Housing

Approved for hazardous locations

Standards

NEMA 1, 4, 13; UL/NEMA approved

Weight (Aluminum)

~7 lbs

Weight (Bronze)

~16 lbs
