FECG01.2-4K00-3P400-A-SP-MODB-01V01

Request a quote

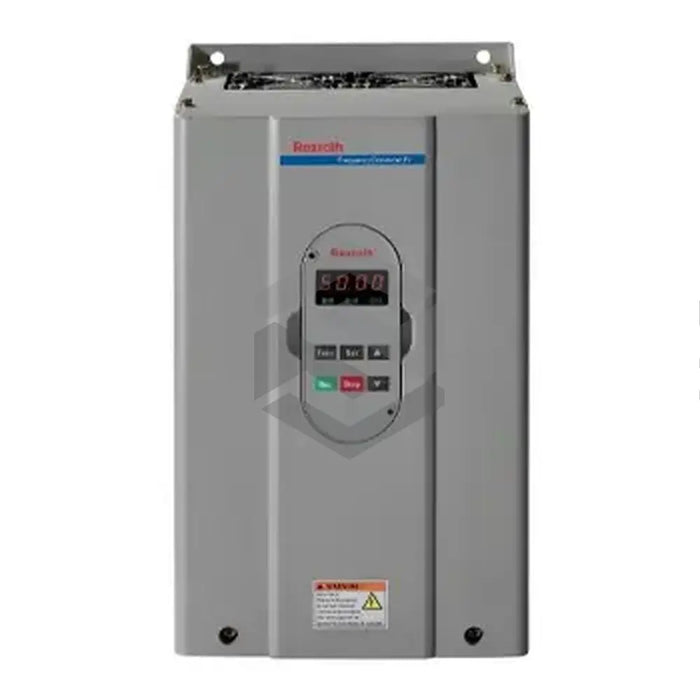

The FECG01.2-4K00-3P400-A-SP-MODB-01V01, crafted by Bosch Rexroth Indramat, forms part of the Fe converter series predominantly used for general automation and other industrial applications. Renowned for its longevity, high efficiency, and silent operation, this 4 kW device includes an inbuilt control panel enhancing user convenience. Its adjustable PWM frequency ranges from 1-15 kHz, offering flexible customization via a specially designed PC software. This sturdy 3.2 kg converter demands significant torque at startup and operates at an input current of 13 A and an output current of 10 A. Endowed with an IP 20 protection rating, it functions at maximum heights up to 1000 meters, though its output power diminishes by 1% per 100 meters abpve this. Optimal operating temperatures lie between -10 and 40 degrees Celsius. The converter features an integrated DC disc brake with a 0-10 second brake time. Firmware version 01 is standard with an accompanying compact panel inclusive of a potentiometer.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: Fe converter
  • Model: FECG01.2-4K00-3P400-A-SP-MODB-01V01
  • Power Output: 4 kW
  • Weight: 3.2 kgs
  • Input Current: 13 A
  • Output Current: 10 A
  • Control Panel: Integrated
  • Configuration: Via PC and compatible software
  • PWM Frequency: 1 - 15 kHz (continuously adjustable)
  • Initial Torque Requirement: High
  • Protection Rating: IP 20
  • Maximum Operational Height: 1000 meters
  • Operating Power Reduction: 1% per 100 meters above 1000 meters
  • Operating Temperature Range: -10 to 40 degrees Celsius
  • Brake Type: Direct current disc brake
  • Braking Time: 0 – 10 seconds
  • Additional Features: Compact conventional operating panel with a potentiometer
  • Firmware Version: 01
