FECG01.2-7K50-3P400-A-SP-MODB-01V01

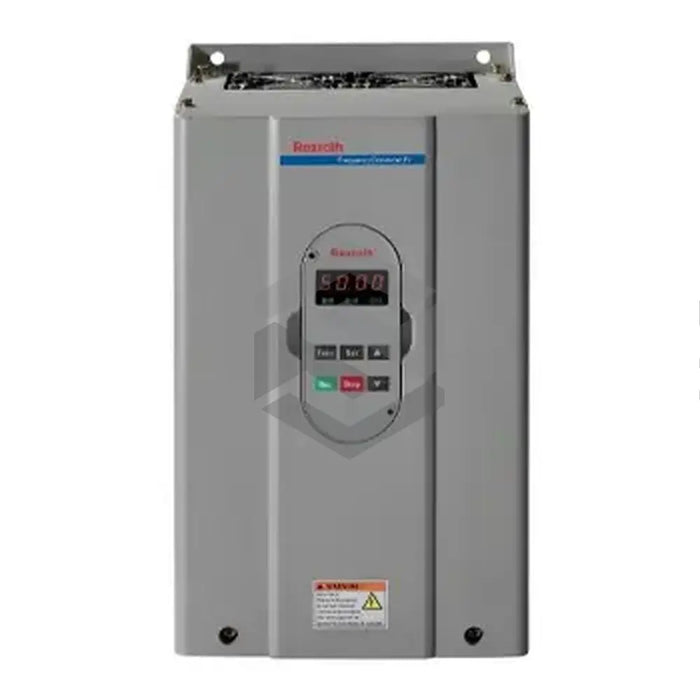

The FECG01.2-7K50-3P400-A-SP-MODB-01V01 is a high-quality Frequency Converter, manufactured by Bosch Rexroth Indramat. This model is part of the Fe converter series, designed for general automation, and renowned for its exceptional value, easy operation, and diverse standard functions. The converter power is rated at 7.5 kW and operates optimally at altitudes up to 1000 meters with a 1% output power reduction per 100 meters rise above. It is optimized to work within a temperature range of -10 to 40 degrees Celsius. The converter is equipped with a DC disc brake, with braking time 0-10 seconds, and start frequency 0-60 Hz. A distinguishing element is its integrated panel that includes a potentiometer, facilitating swift operations. The FECG01.2-7K50-3P400-A-SP-MODB-01V01 comes with a full and standard version firmware. The frequency converter requires a high torque at start-up and can be parameterized via its associated computer software.
30 Day Warranty
Technical Specifications
